Model No.
|
Insulation Color |
Wire Range mm2/Awg 适用 |

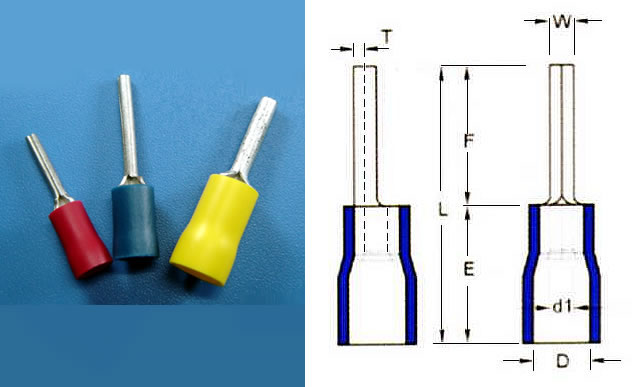

Dimension(mm/inch)主要尺寸 |
Packing 包 |
|
|
331007
|
Red |
0.5-1.5mm2 22-16AWG |
1.9(.075)/7.0(0276)/17(.669)/10(.394)/4.0(.157)/1.7(075)/0.75(.030) |
1000/500 |
|
|
331007
|
Red |
0.5-1.5mm2 22-16AWG |
1.9(.075)/9.0(.354)/19(.748)/10(.394)/4.0(.157)/1.7(075)/0.75(.030) |
1000/500 |
|
|
331010
|
Red |
0.5-1.5mm2 22-16AWG |
1.9(.075)/10.0(.394)/20(0787)/10(.394)/4.0(.157)/1.7(075)/0.75(.030) |
1000/500 |
|
|
331019
|
Red |
0.5-1.5mm2 22-16AWG |
1.9(.075)/12.0(.472)/22(.866)/10(.394)/4.0(.157)/1.7(075)/0.75(.030) |
1000/500 |
|
|
335007
|
Blue |
1.5-2.5mm2 16-14AWG |
1.9(.075)/7.0(0276)/17(.669)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031) |
1000/500 |
|
|
335009
|
Blue |
1.5-2.5mm2 16-14AWG |
1.9(.075)/9.0(.354)/19(.748)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031) |
1000/500 |
|
|
335017
|
Blue |
1.5-2.5mm2 16-14AWG |
1.9(.075)/17.0(.669)/27(1.062)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031) |
1000/500 |
|
|
335019
|
Blue |
1.5-2.5mm2 16-14AWG |
1.9(.075)/12.0(.472)/22(.866)/10(.394)/4.5(.177)/2.3(.09)/0.8(.031) |
1000/500 |
|
|
333027
|
Yellow |
4-6mm2 12-10AWG |
2.7(.106)/15.0(.591)/28(1.102)/13.0(.512)/6.3(.248)/3.4(.134)/1.0(.039) |
1000/500 |
|
