Our Products > Wire Accessories & tool

Vinyl Wire And Cap(*)
－ View Enlargement －

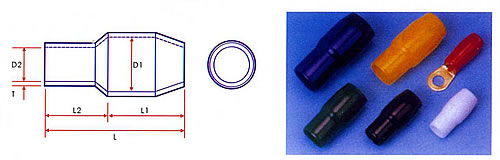

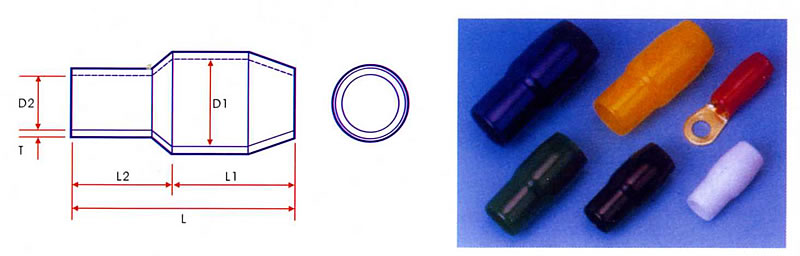

Item No. Wire Size (mm)² Dimension(mm) Packing
D1 D2 L L1 L2 T
V-1.25
V-1.25
 3.3 3.1 15.0 7.0 8.0 0.6
100
V-2.0
V-2.0
 4.5 3.7 16.0 8.0 8.0 0.7
100
V-3.5
V-3.5
 5.7 4.1 18.0 9.0 9.0 0.8
100
V-5.5
V-5.5
 5.7 5.2 20.0 10.0 10.0 0.8
100
V-8.0
V-8.0
 7.2 6.2 21.0 11.0 10.0 1.0
100
V-12
V-12
 10.0 7.3 27.0 13.0 14.0 1.1
100
V-14
V-14
 10.0 8.0 28.0 15.0 13.0 1.1
100
V-22
V-22
 12.0 9.5 29.0 15.0 14.0 1.2
100
V-38
V-38
 14.0 11.8 34.0 17.0 17.0 1.4
100
V-60
V-60
 17.0 13.9 42.0 22.0 20.0 1.5
100
V-70
V-70
 17.9 15.1 45.0 25.5 19.0 1.5
100
V-80
V-80
 19.5 16.0 46.0 25.0 21.0 1.5
50
V-100
V-100
 22.0 18.0 55.0 31.0 24.0 1.7
50
V-125
V-125
 24.4 20.0 60.0 32.0 28.0 1.8
50
V-150
V-150
 26.0 22.0 65.0 34.0 31.0 1.8
50
V-185
V-185
 29.0 24.0 66.7 33.0 33.4 1.8
50
V-200
V-200
 32.2 24.0 69.0 38.0 31.0 2.0
50
V-250
V-250
 37.5 26.5 75.0 42.0 33.0 2.0
50
V-325
V-325
 37.5 30.0 75.0 42.0 33.0 2.0
25
V-400
V-400
 45.1 37.5 83.0 43.0 40.0 2.0
25
V-500
V-500
 48.2 40.2 85.0 43.0 42.0 2.0
25
V-630
V-630
 53.8 45.2 93.0 48.0 45.0 2.0
25
