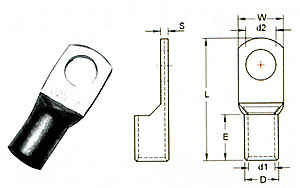

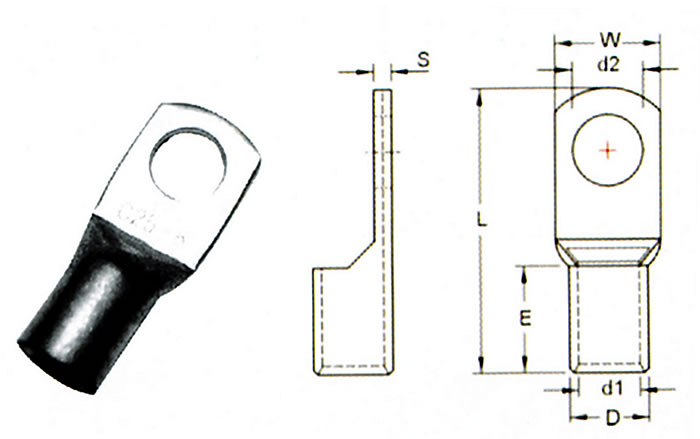

Tubular Lugs Terminals TL Type
－ View Enlargement －
  • Terminal Body: Copper (端子材質: 紫銅)
  • Plating: Tin(表面處理: 鍍錫)

Model No. Q’TY BOX 包裝量 螺栓規格 Dimension(mm/inch)主要尺寸
Stud Size d2 W d1 D L E S
CN300-14
5
 9/16" 15.0 44.0 24.5 31.0 103.2 42.0 6.5
CN300-16
5
 5/8" 17.0 44.0 24.5 31.0 103.2 42.0 6.5
CN300-18
5
 11/16" 19.0 44.0 24.5 31.0 103.2 42.0 6.5
CN300-20
5
 3/4" 21.0 44.0 24.5 31.0 103.2 42.0 6.5
CN300-22
5
 7/8" 23.0 44.0 24.5 31.0 103.2 42.0 6.5
CN300-24
5
 15/16" 25.0 44.0 24.5 31.0 103.2 42.0 6.5
CN400-14
5
 9/16" 15.0 51.0 27.5 35.5 120.2 47.0 8.0
CN400-16
5
 5/8" 17.0 51.0 27.5 35.5 120.2 47.0 8.0
CN400-18
5
 11/16" 19.0 51.0 27.5 35.5 120.2 47.0 8.0
CN400-20
5
 3/4" 21.0 51.0 27.5 35.5 120.2 47.0 8.0
CN400-22
5
 7/8" 23.0 51.0 27.5 35.5 120.2 47.0 8.0
CN400-24
5
 15/16" 25.0 51.0 27.5 35.5 120.2 47.0 8.0
CN500-14
5
 9/16" 15.0 56.0 31.0 40.0 127.0 47.5 9.0
CN500-16
5
 5/8" 17.0 56.0 31.0 40.0 127.0 47.5 9.0
CN500-18
5
 11/16" 19.0 56.0 31.0 40.0 127.0 47.5 9.0
CN500-20
5
 3/4" 21.0 56.0 31.0 40.0 127.0 47.5 9.0
CN500-22
5
 7/8" 23.0 56.0 31.0 40.0 127.0 47.5 9.0
CN500-24
5
 15/16" 25.0 56.0 31.0 40.0 127.0 47.5 9.0
CN630-14
5
 9/16" 15.0 63.0 34.5 44.5 140.0 56.0 10.0
CN630-16
5
 5/8" 17.0 63.0 34.5 44.5 140.0 56.0 10.0
CN630-18
5
 11/16" 19.0 63.0 34.5 44.5 140.0 56.0 10.0
CN630-20
5
 3/4" 21.0 63.0 34.5 44.5 140.0 56.0 10.0
CN630-22
5
 7/8" 23.0 63.0 34.5 44.5 140.0 56.0 10.0
CN630-24
5
 15/16" 25.0 63.0 34.5 44.5 140.0 56.0 10.0
