Tubular Lugs Terminals TL Type
－ View Enlargement －

Material:

  • Terminal Body: Copper (端子材質: 紫銅)
  • Plating: Tin(表面處理: 鍍錫)

Model No. Wire Range mm²/Awg
適用電線 		螺栓規格 Dimension(mm/inch)
主要尺寸 		Q’TY BOX
包裝量

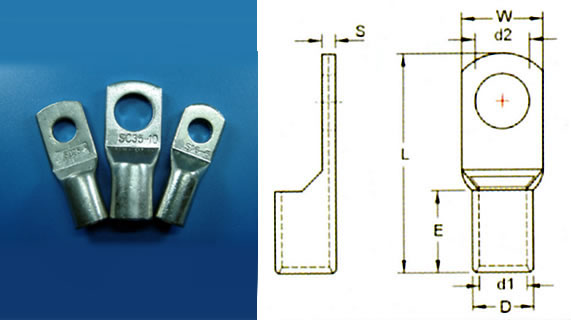

Stud Size d2 W d1 D L E S
CN2.5-4
1.5-2.5mm²
14-16AWG
 #8 4.3 8.0 2.4 4.0 19.6
1000
CN2.5-5
1.5-2.5mm²
14-16AWG
 #10 5.3 8.0 2.4 4.0 19.6
1000
CN2.5-6
1.5-2.5mm²
14-16AWG
 1/4" 6.5 10.0 2.4 4.0 21.0
1000
CN4-4
2.5-4mm²
14-12AWG
 #8 4.3 10.0 3.1 4.8 21.0
1000
CN4-5
2.5-4mm²
14-12AWG
 #10 5.3 10.0 3.1 4.8 21.0
1000
CN4-6
2.5-4mm²
14-12AWG
 1/4" 6.5 10.0 3.1 4.8 21.0
1000
CN6-4
4-6mm²
12-10AWG
 #8 4.3 10.0 3.8 5.5 25.0
1000
CN6-5
4-6mm²
12-10AWG
 #10 5.3 10.0 3.8 5.5 25.0
1000
CN6-6
4-6mm²
12-10AWG
 1/4" 6.5 10.0 3.8 5.5 25.0
1000
CN10-6
10mm²
8AWG
 1/4" 6.5 12.6 4.5 6.2 26.5
500
CN10-8
10mm²
8AWG
 5/16" 8.4 12.6 4.5 6.2 26.5
500
CN16-6
16mm²
6AWG
 1/4" 6.5 12.6 5.5 7.2 29.5
500
CN16-8
16mm²
6AWG
 5/16" 8.4 12.6 5.5 7.2 29.5
500
CN25-6
25mm²
4AWG
 1/4" 6.5 15.0 7.0 9.0 33.0
200
CN25-8
25mm²
4AWG
 5/16" 8.4 15.0 7.0 9.0 33.0
200
CN25-10
25mm²
4AWG
 3/8" 10.5 15.0 7.0 9.0 33.0
200
CN35-6
35mm²
2AWG
 1/4" 6.5 15.2 8.2 10.6 38.0 14.2 2.5
200
CN35-8
35mm²
2AWG
 5/16" 8.4 15.2 8.2 10.6 38.0 14.2 2.5
200
CN35-10
35mm²
2AWG
 3/8" 10.5 15.2 8.2 10.6 38.0 14.2 2.5
200
CN50-8
50mm²
1/0AWG
 5/16" 8.4 18.5 10.0 13.0 44.5 18.0 2.9
200
CN50-10
50mm²
1/0AWG
 3/8" 10.5 18.5 10.0 13.0 44.5 18.0 2.9
200
CN50-12 50mm²
1/0AWG 		1/2" 13.0 18.5 10.0 13.0 44.5 18.0 2.9 200
CN70-8
70mm²
2/0AWG
 5/16" 8.4 21.4 11.5 15.0 54.2 20.4 3.5
100
CN70-10
70mm²
2/0AWG
 3/8" 10.5 21.4 11.5 15.0 54.2 20.4 3.5
100
CN70-12
70mm²
2/0AWG
 1/2" 13.0 21.4 11.5 15.0 54.2 20.4 3.5
100
CN95-8
95mm²
3/0AWG
 5/16" 8.4 25.5 13.5 17.4 59.0 23.4 3.9
50
CN95-10
95mm²
3/0AWG
 3/8" 10.5 25.5 13.5 17.4 59.0 23.4 3.9
50
CN95-12
95mm²
3/0AWG
 1/2" 13.0 25.5 13.5 17.4 59.0 23.4 3.9
50
CN120-10
120mm²
4/0AWG
 3/8" 10.5 28.3 15.5 19.9 66.7 24.6 4.5
25
CN120-12
120mm²
4/0AWG
 1/2" 13.0 28.3 15.5 19.9 66.7 24.6 4.5
25
CN120-14
120mm²
4/0AWG
 9/16" 15.0 28.3 15.5 19.9 66.7 24.6 4.5
25
CN120-16
120mm²
4/0AWG
 5/8" 17.0 28.3 15.5 19.9 66.7 24.6 4.5
25
CN150-10
150mm²
250/300MCM
 1/2" 10.5 31.0 17.0 21.7 74.5 29.5 4.7
25
CN150-12
150mm²
250/300MCM
 9/16" 13.0 31.0 17.0 21.7 74.5 29.5 4.7
25
CN150-14
150mm²
250/300MCM
 5/8" 15.0 31.0 17.0 21.7 74.5 29.5 4.7
25
CN150-16
150mm²
250/300MCM
 11/16" 17.0 31.0 17.0 21.7 74.5 29.5 4.7
25
CN185-12
185mm²
300/350MCM
 9/16" 13.0 34.2 19.0 24.0 81.4 32.5 5.0
25
CN185-14
185mm²
300/350MCM
 5/8" 15.0 34.2 19.0 24.0 81.4 32.5 5.0
25
CN185-16
185mm²
300/350MCM
 11/16" 17.0 34.2 19.0 24.0 81.4 32.5 5.0
25
CN240-14
240mm²
400/450MCM
 9/16" 15.0 39.0 21.5 27.0 94.0 35.5 5.5
25
CN240-16
240mm²
400/450MCM
 5/8" 17.0 39.0 21.5 27.0 94.0 35.5 5.5
25
CN240-18
240mm²
400/450MCM
 11/16" 19.0 39.0 21.5 27.0 94.0 35.5 5.5
25
