Cord End Sleeves(*)
－ View Enlargement －
  • Terminal Body: Copper (端子材質: 紫銅)
  • Plating: Tin(表面處理: 鍍錫)

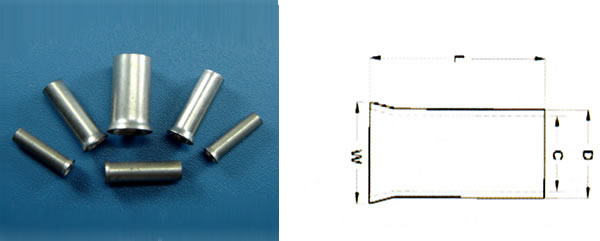

Model No. Wire Range mm2/Awg 適用電線 Dimension主要尺寸 L Dimension主要尺寸 D Dimension主要尺寸 C Dimension主要尺寸 W Q’TY BOX 包裝量
inch mm inch mm inch mm inch mm
CN005006
0.5(22)
 6.0 .236 1.3 .051 1.0 .038 2.1 .083
1000
CN005008
0.5(22)
 8.0 .315 1.3 .051 1.0 .038 2.1 .083
1000
CN005010
0.5(22)
 10.0 .394 1.3 .051 1.0 .038 2.1 .083
1000
CN007506
0.75(20)
 6.0 .236 1.5 .059 1.2 .047 2.3 .091
1000
CN007508
0.75(20)
 8.0 .315 1.5 .059 1.2 .047 2.3 .091
1000
CN007510
0.75(20)
 10.0 .394 1.5 .059 1.2 .047 2.3 .091
1000
CN010006
1.0(18)
 6.0 .236 1.7 .067 1.4 .055 2.5 .098
1000
CN010008
1.0(18)
 8.0 .315 1.7 .067 1.4 .055 2.5 .098
1000
CN010010
1.0(18)
 10.0 .394 1.7 .067 1.4 .055 2.5 .098
1000
CN010012
1.0(18)
 12.0 .472 1.7 .067 1.4 .055 2.5 .098
1000
CN015007
1.5(16)
 7.0 .276 2.0 .079 1.7 .067 2.8 .110
1000
CN015008
1.5(16)
 8.0 .315 2.0 .079 1.7 .067 2.8 .110
1000
CN015010
1.5(16)
 10.0 .394 2.0 .079 1.7 .067 2.8 .110
1000
CN015012
1.5(16)
 12.0 .472 2.0 .079 1.7 .067 2.8 .110
1000
CN025007
2.5(14)
 7.0 .276 2.5 .098 2.2 .087 3.4 .134
1000
CN025008
2.5(14)
 8.0 .315 2.5 .098 2.2 .087 3.4 .134
1000
CN025010
2.5(14)
 10.0 .394 2.5 .098 2.2 .087 3.4 .134
1000
CN025012
2.5(14)
 12.0 .472 2.5 .098 2.2 .087 3.4 .134
1000
CN040008
4.0(12)
 8.0 .315 3.2 .126 2.8 .110 4.0 .157
1000
CN040009
4.0(12)
 9.0 .354 3.2 .126 2.8 .110 4.0 .157
1000
CN040010
4.0(12)
 10.0 .394 3.2 .126 2.8 .110 4.0 .157
1000
CN040012
4.0(12)
 12.0 .472 3.2 .126 2.8 .110 4.0 .157
1000
CN040015
4.0(12)
 15.0 .591 3.2 .126 2.8 .110 4.0 .157
1000
CN040018
4.0(12)
 18.0 .709 3.2 .126 2.8 .110 4.0 .157
1000
CN060010
6.0(10)
 10.0 .394 3.9 .154 3.5 .138 4.7 .185
1000
CN060012
6.0(10)
 12.0 .472 3.9 .154 3.5 .138 4.7 .185
1000
CN060015
6.0(10)
 15.0 .591 3.9 .154 3.5 .138 4.7 .185
1000
CN060018
6.0(10)
 18.0 .709 3.9 .154 3.5 .138 4.7 .185
1000
CN100012
10.0(8)
 12.0 .472 4.9 .193 4.5 .177 5.8 .228
1000
CN100015
10.0(8)
 15.0 .591 4.9 .193 4.5 .177 5.8 .228
1000
CN100018
10.0(8)
 18.0 .709 4.9 .193 4.5 .177 5.8 .228
1000
CN160012
16.0(6)
 12.0 .472 6.2 .244 5.8 .288 7.5 .285
1000
CN160015
16.0(6)
 15.0 .591 6.2 .244 5.8 .288 7.5 .285
1000
CN160018
16.0(6)
 18.0 .709 6.2 .244 5.8 .288 7.5 .285
1000
CN250015
25.0(4)
 15.0 .591 7.7 .303 7.3 .287 9.5 .374
500
CN250016
25.0(4)
 16.0 .630 7.7 .303 7.3 .287 9.5 .374
500
CN250018
25.0(4)
 18.0 .709 7.7 .303 7.3 .287 9.5 .374
500
CN250022
25.0(4)
 22.0 .866 7.7 .303 7.3 .287 9.5 .374
500
CN350016
35.0(2)
 16.0 .630 8.7 .343 8.3 .327 11.0 .433
500
CN350018
35.0(2)
 19.0 .709 8.7 .343 8.3 .327 11.0 .433
500
CN350020
35.0(2)
 20.0 .787 8.7 .343 8.3 .327 11.0 .433
500
CN350025
35.0(2)
 25.0 .984 8.7 .343 8.3 .327 11.0 .433
500
CN500018
50.0(1/0)
 19.0 .709 10.9 .429 10.3 .406 13.0 .511
250
CN500020
50.0(1/0)
 20.0 .787 10.9 .429 10.3 .406 13.0 .511
250
CN500025
50.0(1/0)
 25.0 .984 10.9 .429 10.3 .406 13.0 .511
250
CN700022
70.0(2/0)
 22.0 .866 14.3 .563 13.5 .531 15.3 .602
250
CN700025
70.0(2/0)
 25.0 .984 14.3 .563 13.5 .531 15.3 .602
250
CN950025
95.0(3/0)
 25.0 .984 15.5 .610 14.7 .579 16.6 654
250
CN950032
95.0 (3/0)
 32.0 1.260 15.5 .610 14.7 .579 16.6 654
250
CN120030
120.0(4/0)
 30.0 1.181 17.6 .693 16.7 .657 18.6 .732
100
CN120032
120.0(4/0)
 32.0 1.260 17.6 .693 16.7 .657 18.6 .732
100
CN120034
120.0(4/0)
 34.0 1.339 17.6 .693 16.7 .657 18.6 .732
100
CN150032
150.0(250/300MCM)
 32.0 1.260 20.5 .807 19.5 .768 21.5 .846
100
CN150038
150.0(250/300MCM)
 38.0 1.496 20.5 .807 19.5 .768 21.5 .846
100
