Receptacle Disconnects-PVC Insulated

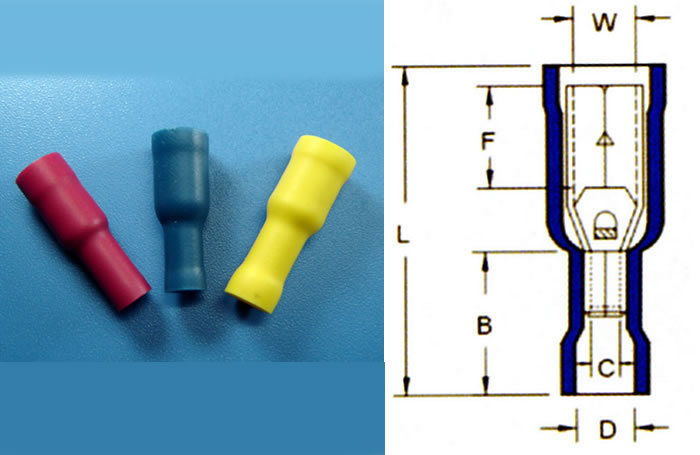

－ View Enlargement －
  • Maximum Electic Rating: 105℃ 300V
    最高溫度: 105℃ 耐壓300V
  • Maximum Electric Current: (最大電流)
    22-16AWG / 0.5-1.5mm²: 10A
    16-14AWG / 1.5-2.5mm²: 15A
    12-10AWG / 4-6mm²: 24A
  • Terminal Body: Brass (端子材質: 黃銅)
  • Insulation: Pvc (護套材質: Pvc)
  • Plating: Tin(表面處理: 鍍錫)

    VM---Flared Vinyl without copper sleeve
    PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve
    　

Model No. Insulation Color
護套顏色 		Wire Range mm²/Awg
適用電線 		Dimension(mm/inch)主要尺寸 Q’TY BOX 包裝量
W F L B D C T
731004VM
Red
0.5-1.5mm²
22-16AWG
 3.9(.153) 7.0(.276) 22.5(.885) 10.5(.413) 3.6(.141) 1.7(.066) 0.4(.016)
1000
735004VM
Blue
1.5-2.5mm²
16-14AWG
 3.9(.153) 7.0(.276) 22.5(.885) 10.5(.413) 4.0(.157) 2.3(.091) 0.4(.016)
1000
735005VM
Blue
1.5-2.5mm²
16-14AWG
 4.9(.193) 7.3(.287) 23.0(.905) 10.5(.413) 4.0(.157) 2.3(.091) 0.4(.016)
1000
733005VM
Yellow
4-6mm²
12-10AWG
 4.9(.193) 7.3(.287) 24.0(.945) 13.0(.512) 5.5(.217) 3.5(.137) 0.45(.018)
1000
