Model No.
|
Insulation Color |
Wire Range mm2/Awg 适用 |
Tab Size 插片 |

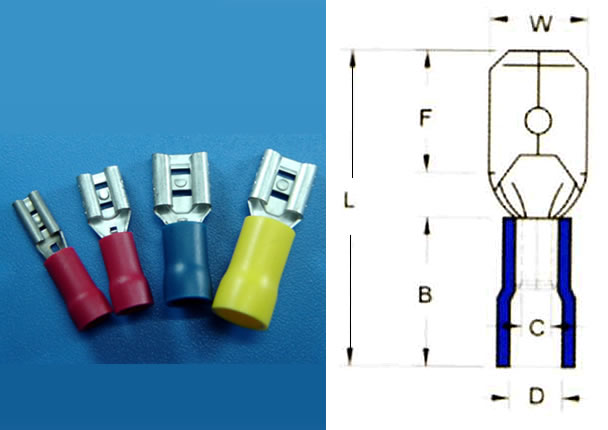

Dimension(mm/inch)主要尺寸 |
Packing 包 |
|
|
361285
|
Red |
0.5-1.5mm2 22-16AWG |
.020*.110(0.5*2.8) |
3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.3(.012) |
1000/500 |
|
|
361288
|
Red |
0.5-1.5mm2 22-16AWG |
.032*.110(0.8*2.8) |
3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.3(.012) |
1000/500 |
|
|
361485
|
Red |
0.5-1.5mm2 22-16AWG |
.020*.187(0.5*4.75) |
5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) |
1000/500 |
|
|
361488
|
Red |
0.5-1.5mm2 22-16AWG |
.032*.187(0.8*4.75) |
5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) |
1000/500 |
|
|
361638
|
Red |
0.5-1.5mm2 22-16AWG |
.032*.250(0.8*6.35) |
6.6(.260)/7.3(.287)/20.5(.807)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) |
1000/500 |
|
|
365285
|
Blue |
1.5-2.5mm2 16-14AWG |
.020*.110(0.5*2.8) |
3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.3(.012) |
1000/500 |
|
|
365288
|
Blue |
1.5-2.5mm2 16-14AWG |
.032*.110(0.8*2.8) |
3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.3(.012) |
1000/500 |
|
|
365485
|
Blue |
1.5-2.5mm2 16-14AWG |
.020*.187(0.5*4.75) |
5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) |
1000/500 |
|
|
365488
|
Blue |
1.5-2.5mm2 16-14AWG |
.032*.187(0.8*4.75) |
5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) |
1000/500 |
|
|
365638
|
Blue |
1.5-2.5mm2 16-14AWG |
.032*.250(0.8*6.35) |
6.6(.260)/7.3(.287)/20.5(.807)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) |
1000/500 |
|
|
365808
|
Blue |
1.5-2.5mm2 16-14AWG |
.032*.312(0.8*8.0) |
8.2(.323)/10.0(.394)/25.5(1.003)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) |
1000/500 |
|
|
363485
|
Yellow |
4-6mm2 12-10AWG |
.020*.187(0.5*4.75) |
5.0(.197)/6.5(.256)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) |
1000/500 |
|
|
363488
|
Yellow |
4-6mm2 12-10AWG |
.032*.187(0.8*4.75) |
5.0(.197)/6.5(.256)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) |
1000/500 |
|
|
363638
|
Yellow |
4-6mm2 12-10AWG |
.032*.250(0.8*6.35) |
6.6(.260)/7.3(.287)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) |
1000/500 |
|
|
363912
|
Yellow |
4-6mm2 12-10AWG |
.048*.375(1.2*9.5) |
8.2(.323)/10.0(.394)/29.5(1.161)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) |
1000/500 |
|
