| 路徑 : Product Overview > Toolless RJ45 Plug > Cat.6 |
| Search by Pitch : |
 |
|
Cat.6 |
| Series | Pitch |
Photo | Maximum Cable O.D. Size Supported | Maximum conductor W/insulation O.D. Size | Conductor type | Packaging Features | Operation Temperature | Storage temperature | Compliance | 產品列表 | 產品編號搜尋 | 其他代工資訊 | |||

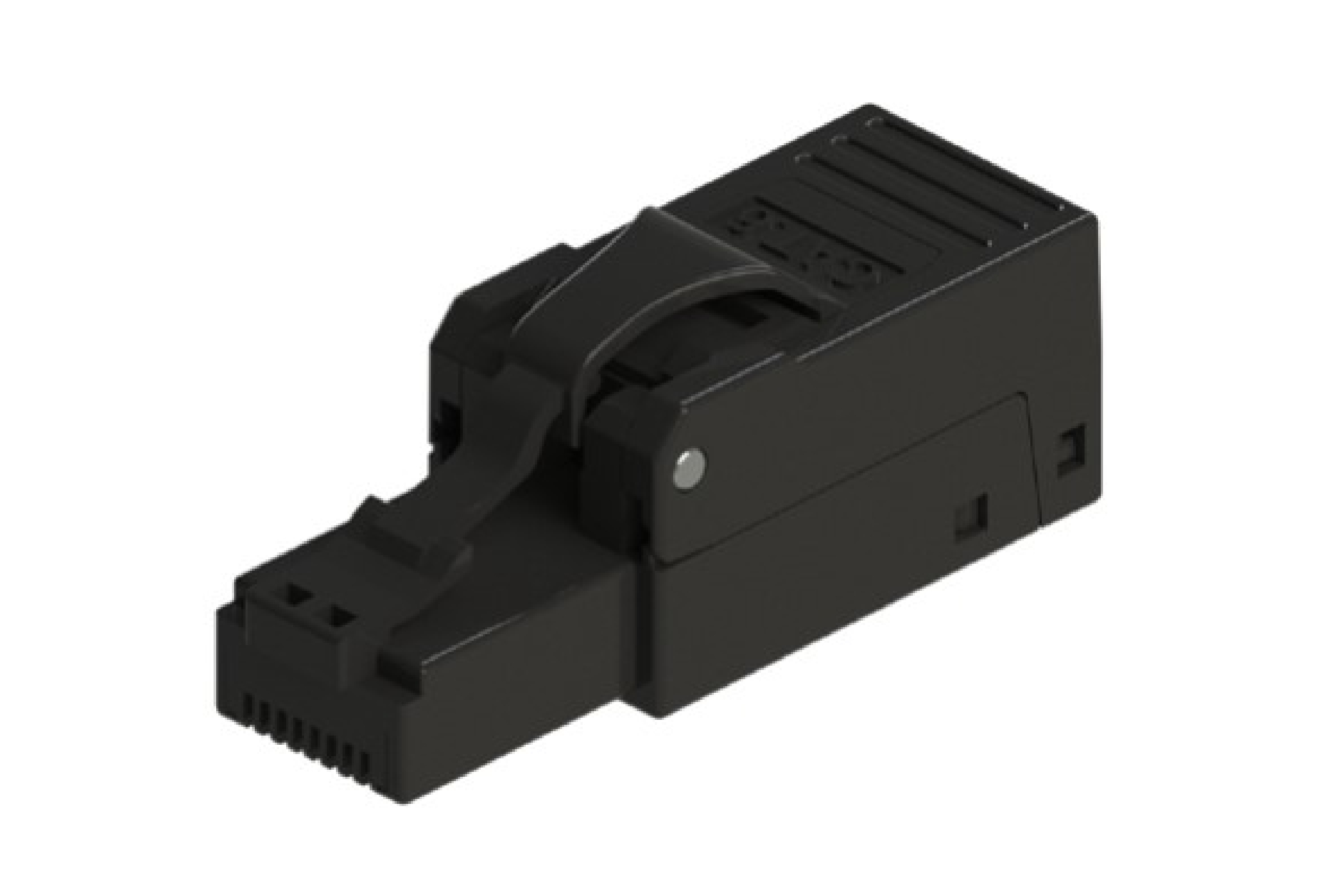

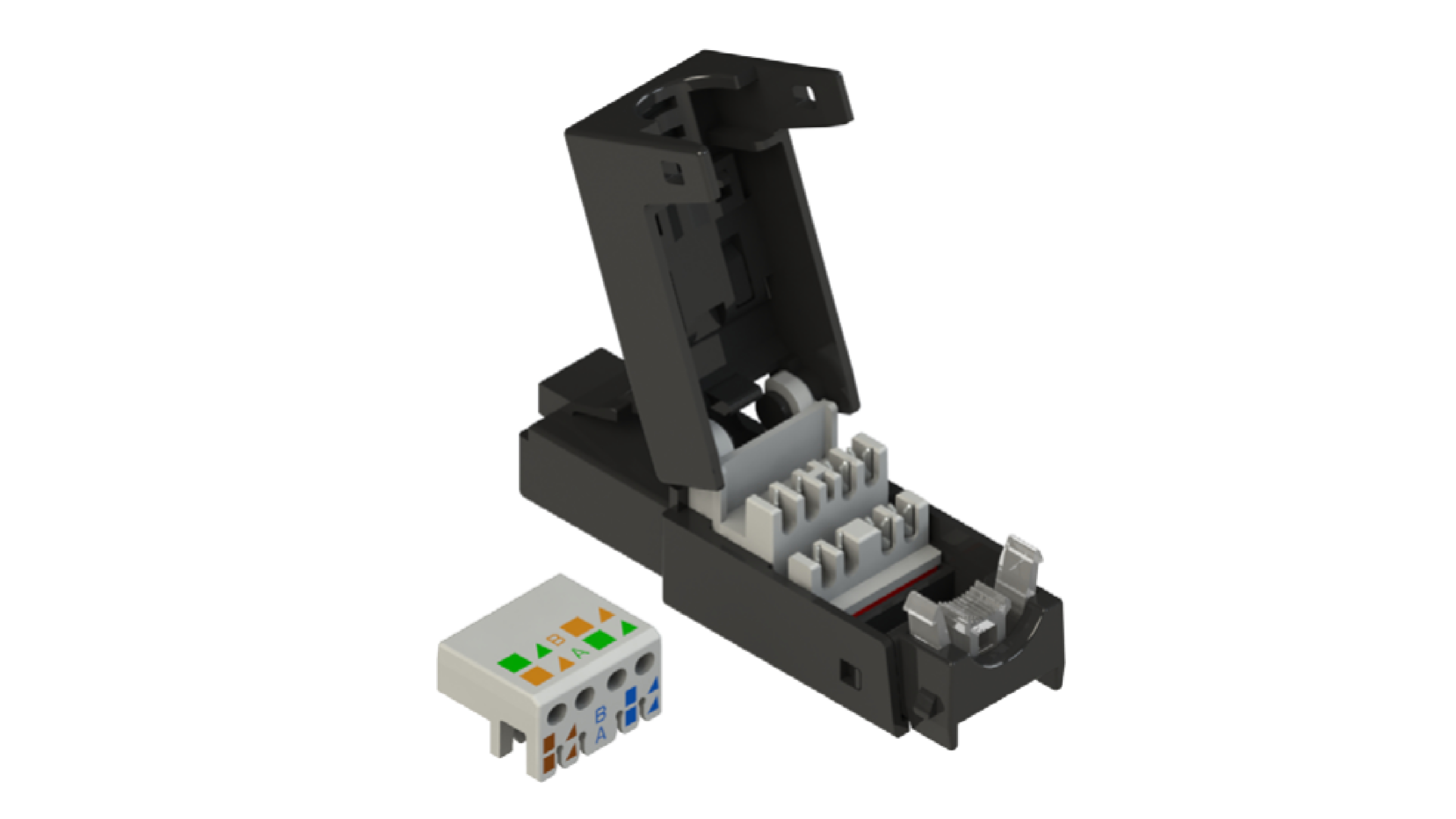

| P8-099 | C6 RJ45 UTP Field Termination plug |
|
|
|
|
4.5 ~ 7.5 mm | 0.75 ~ 1.15 mm | Solid | Stranded | 1 piece / bag , 50 pieces / white box | -10℃ to 60 ℃ | -40℃ to 70℃ | Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568. 2-D , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant |
 |
