| Series |
Pitch
|
Photo |
PDF |
Maximum Cable O.D. Size Supported |
Maximum conductor W/insulation O.D. Size |
Conductor type |
Packaging Features |
Operation Temperature |
Storage temperature |
Compliance |
產品列表 |
產品編號搜尋 |
其他代工資訊 |

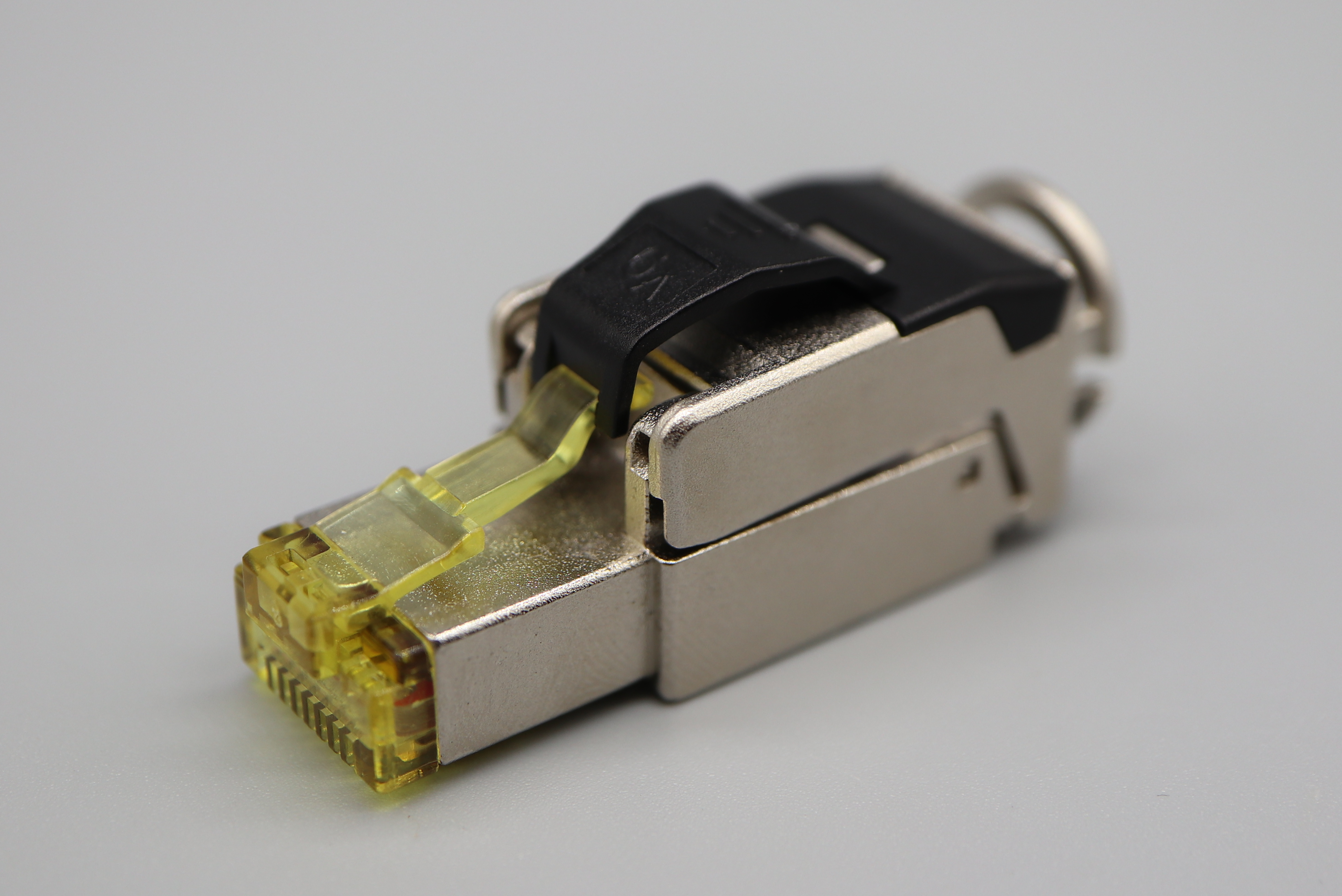

| P8-079-1 |
C8 RJ45 Full Shielded Field Termination plug -Screw-fit boot type |
|
|
|
7.0~8.5mm |
1.02~1.65mm |
Solid | Stranded |
1 piece / bag , 50 pieces / white box |
-10℃ to 60 ℃ |
-40℃ to 70℃ |
Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS compliant |
|
|
|

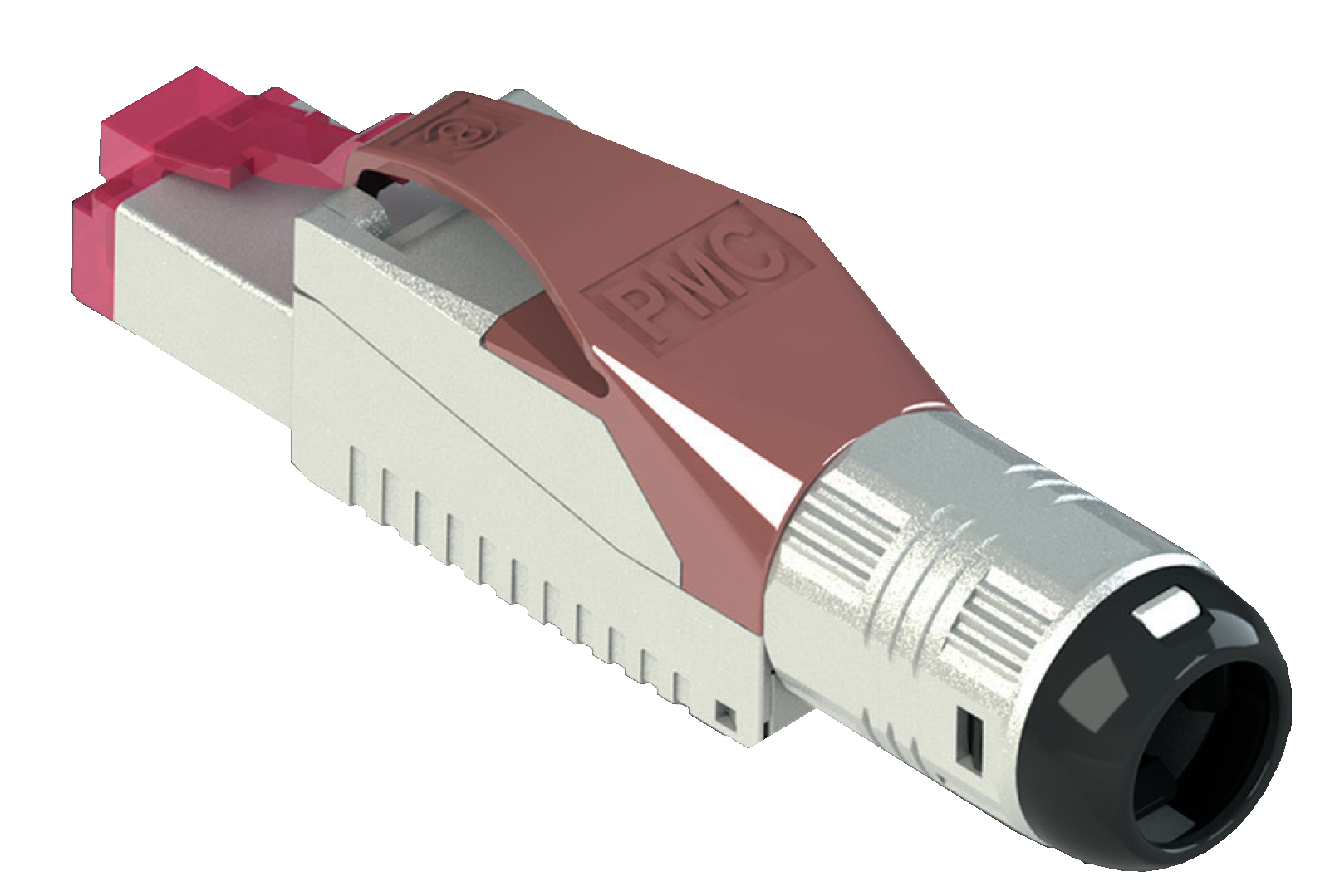

| P8-085 |
C8 RJ45 Full Shielded Field Termination plug -Screw-fit boot type |
|
|
|
7.0~8.5mm |
1.02~1.65mm |
Solid | Stranded |
1 piece / bag , 50 pieces / white box |
-10℃ ~60 ℃ |
-40℃ ~ 70℃ |
Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS compliant |
|
|
|

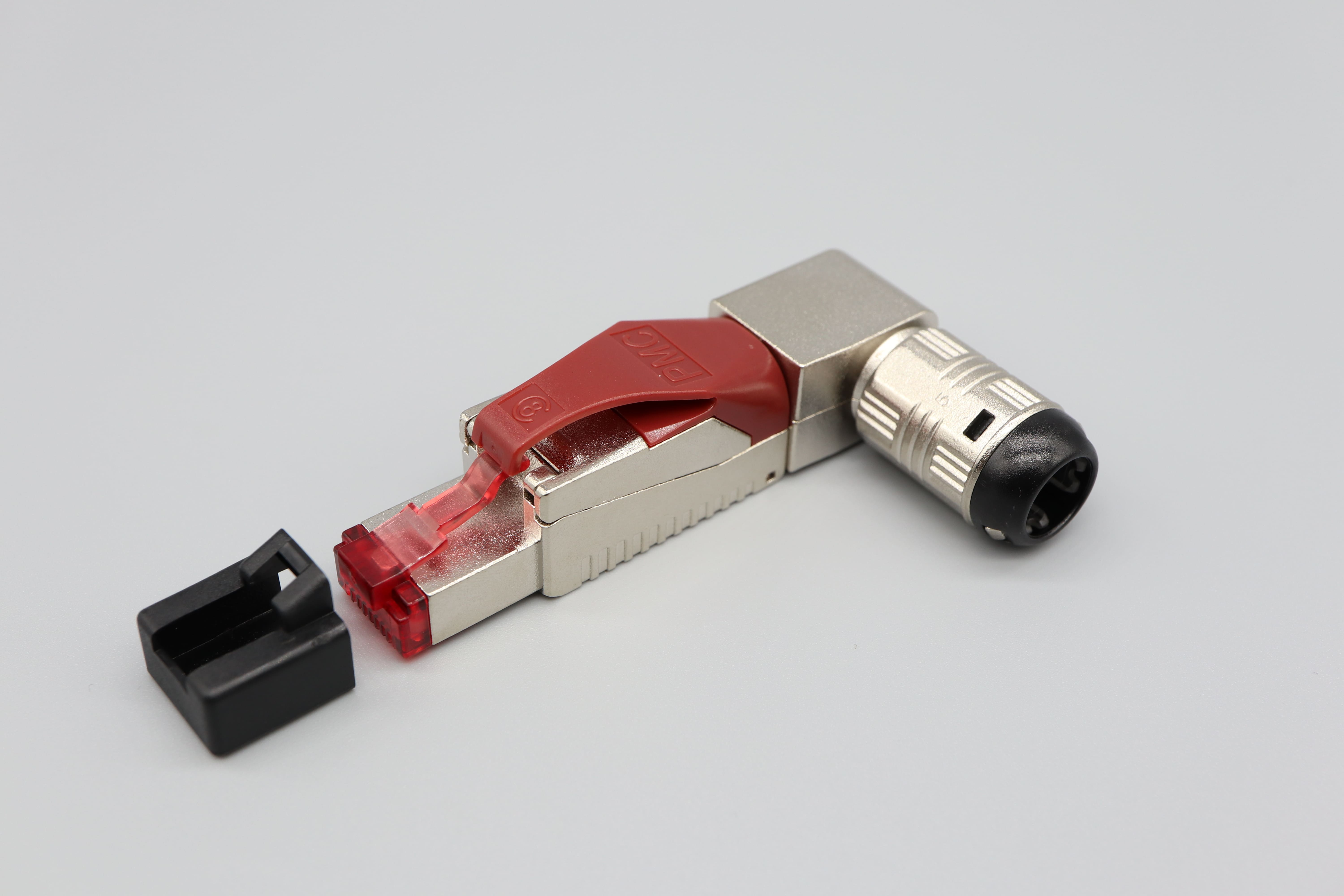

| P8-079-4 |
C8 RJ45 Full Shielded Field Termination plug - cable tie type |
|
|
|
7.0~ 8.5 mm
|
22 ~ 24 Awg
|
Solid | Stranded
|
1 piece / bag , 50 pieces / white box
|
-10℃ to 60 ℃
|
-40℃ to 70℃ |
Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS/ REACH compliant |
|
|
|

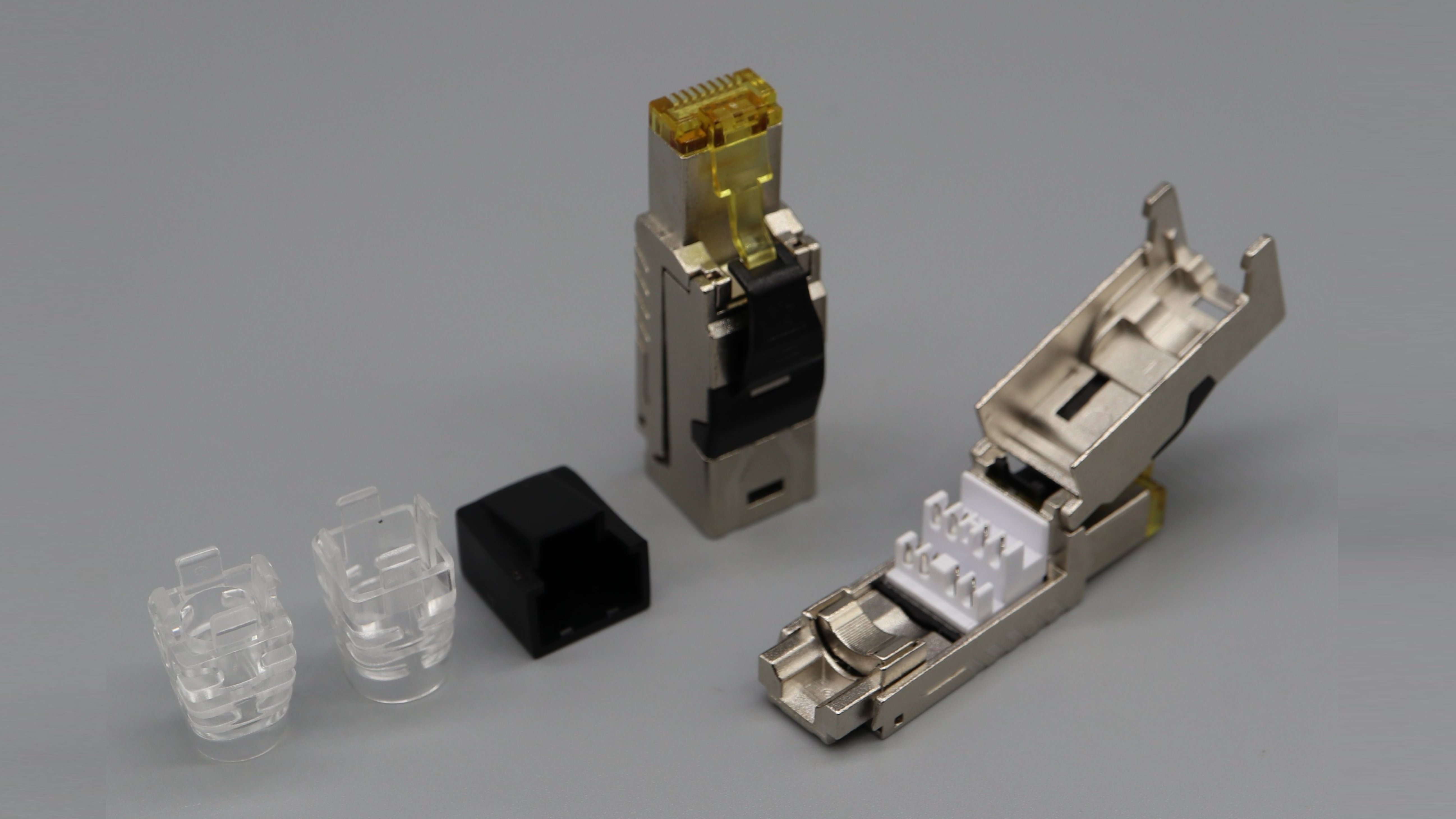

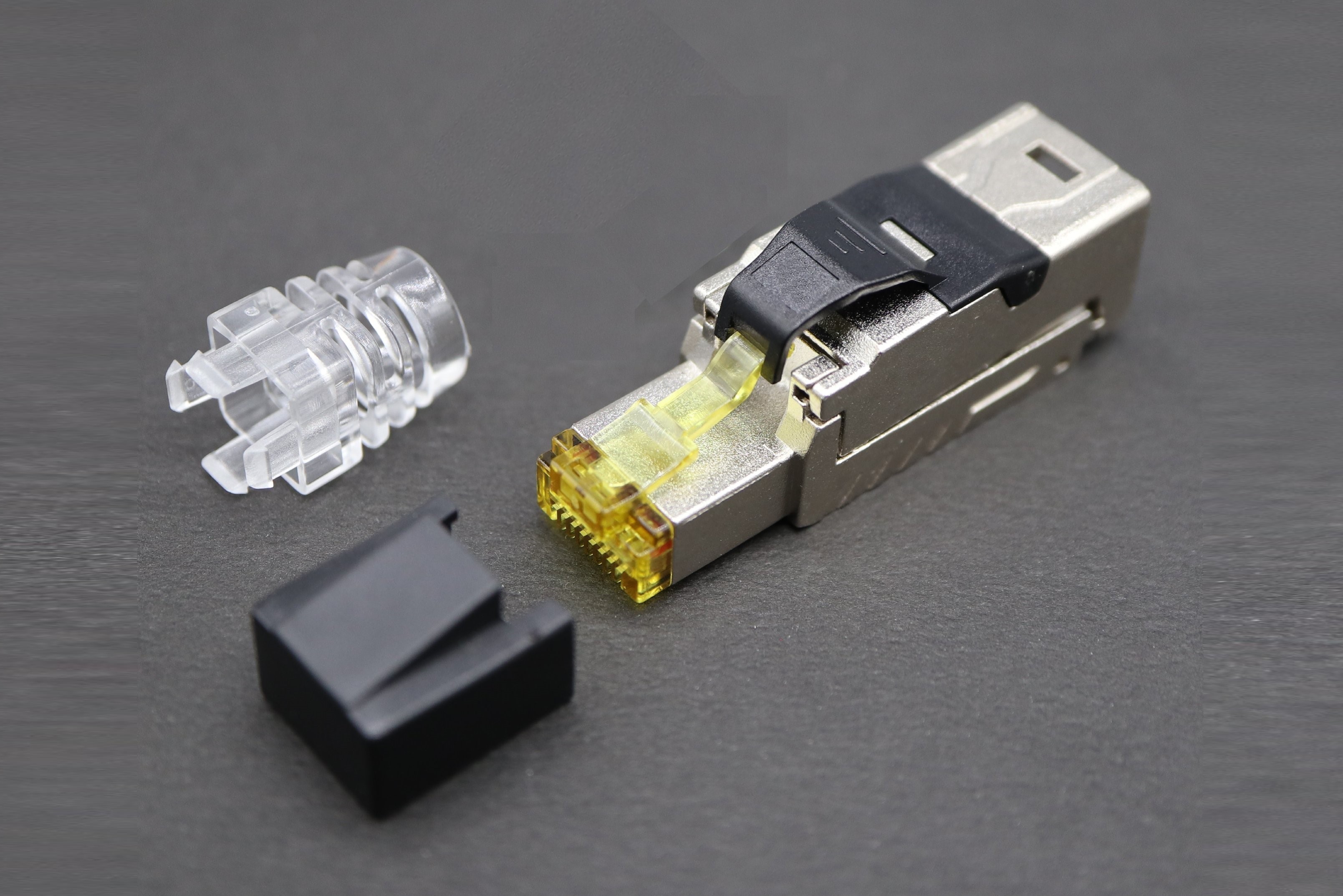

| P8-078-1 |
C8 RJ45 Full Shielded Field Termination plug - snap-in boot type |
|
|
|
5.6~8.5mm
|
1.2~1.7mm |
Solid | Stranded |
1 piece / bag , 50 pieces / white box
|
-10℃ to 60 ℃
|
- 40℃ to 70 ℃
|
Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS / REACH Compliant
|
|
|
|
