| 路徑 : Product Overview > Toolless RJ45 Plug > CAT.6A |
| Search by Pitch : |
 |
| Series | Pitch |
Photo | Maximum Cable O.D. Size Supported | Maximum conductor W/insulation O.D. Size | Conductor type | Packaging Features | Operation Temperature | Storage temperature | Compliance | 產品列表 | 產品編號搜尋 | 其他代工資訊 | ||

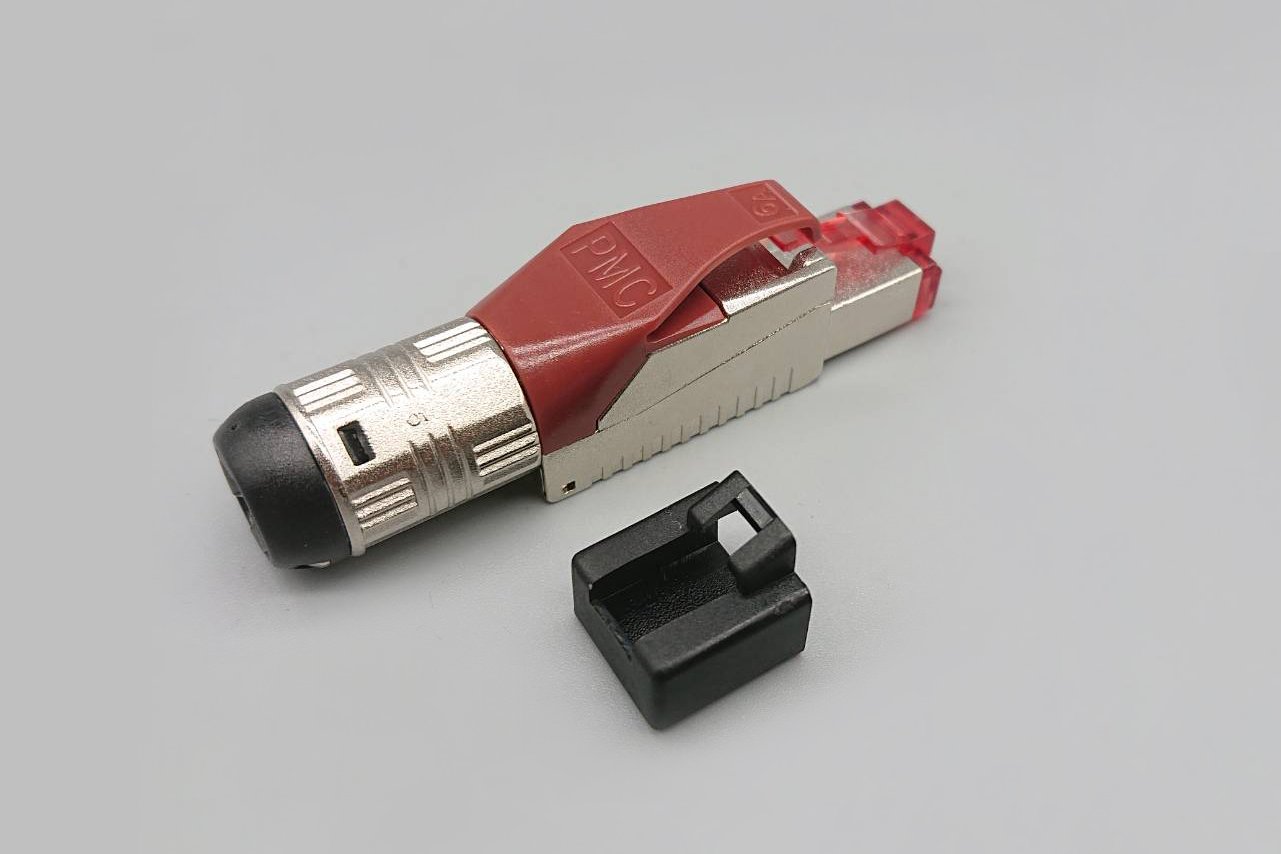

| P8-079 | C6A RJ45 Full Shielded Field Termination plug -Screw-fit boot type |
|
|
|
6.0~7.5mm | 0.91~1.31mm | Solid | Stranded | 1 piece / bag , 50 pieces / white box | -10℃ to 60 ℃ | -40℃ to 70℃ | Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS compliant | |||

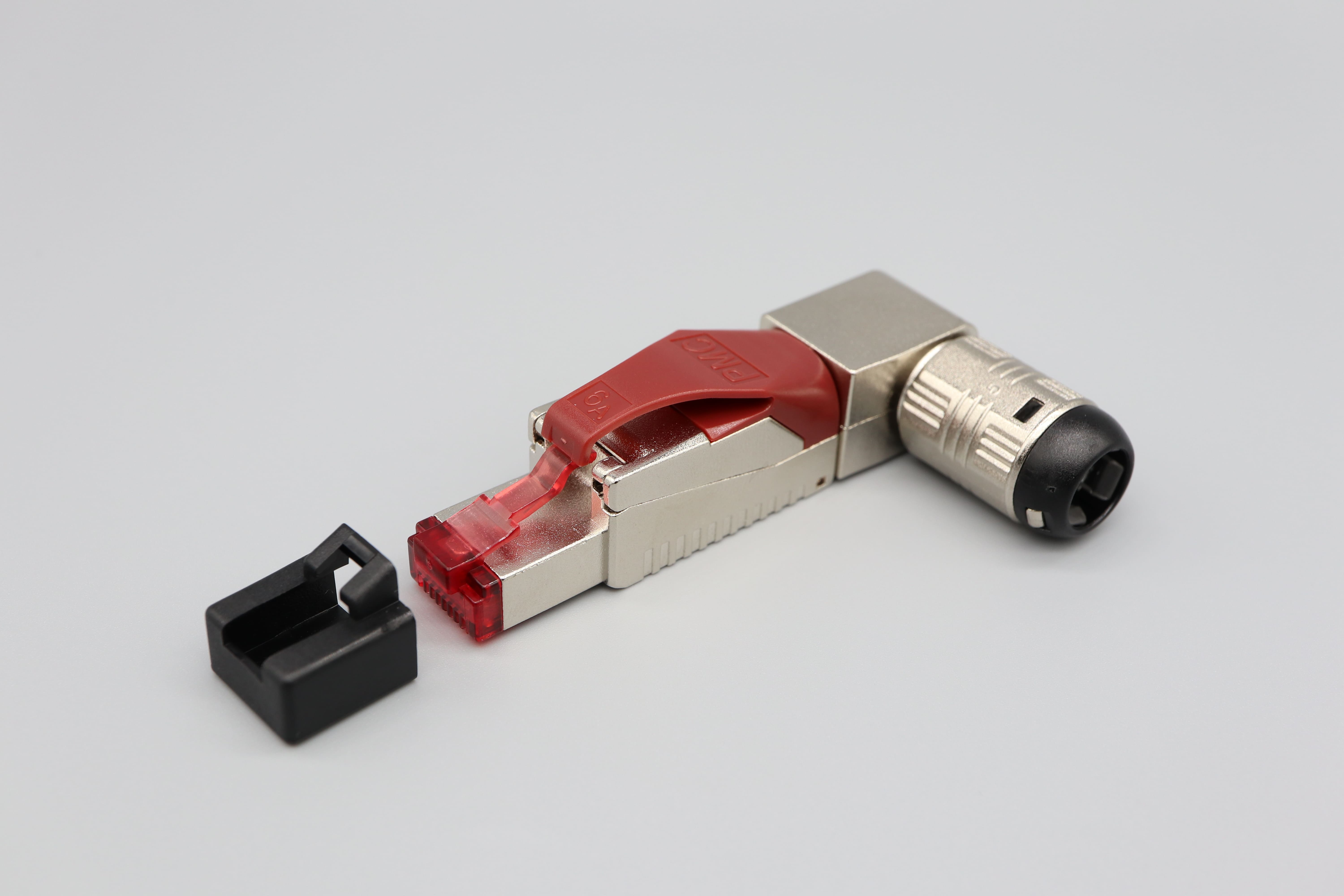

| P8-084 | C6A RJ45 Full Shielded Field Termination plug -Screw-fit boot type |
|
|
|
6.0~7.5mm | 0.91~1.31mm | Solid | Stranded | 1 piece / bag , 50 pieces / white box | -10℃ ~60 ℃ | -40℃ ~ 70℃ | Meet IEC 60603-7-5 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS compliant | |||

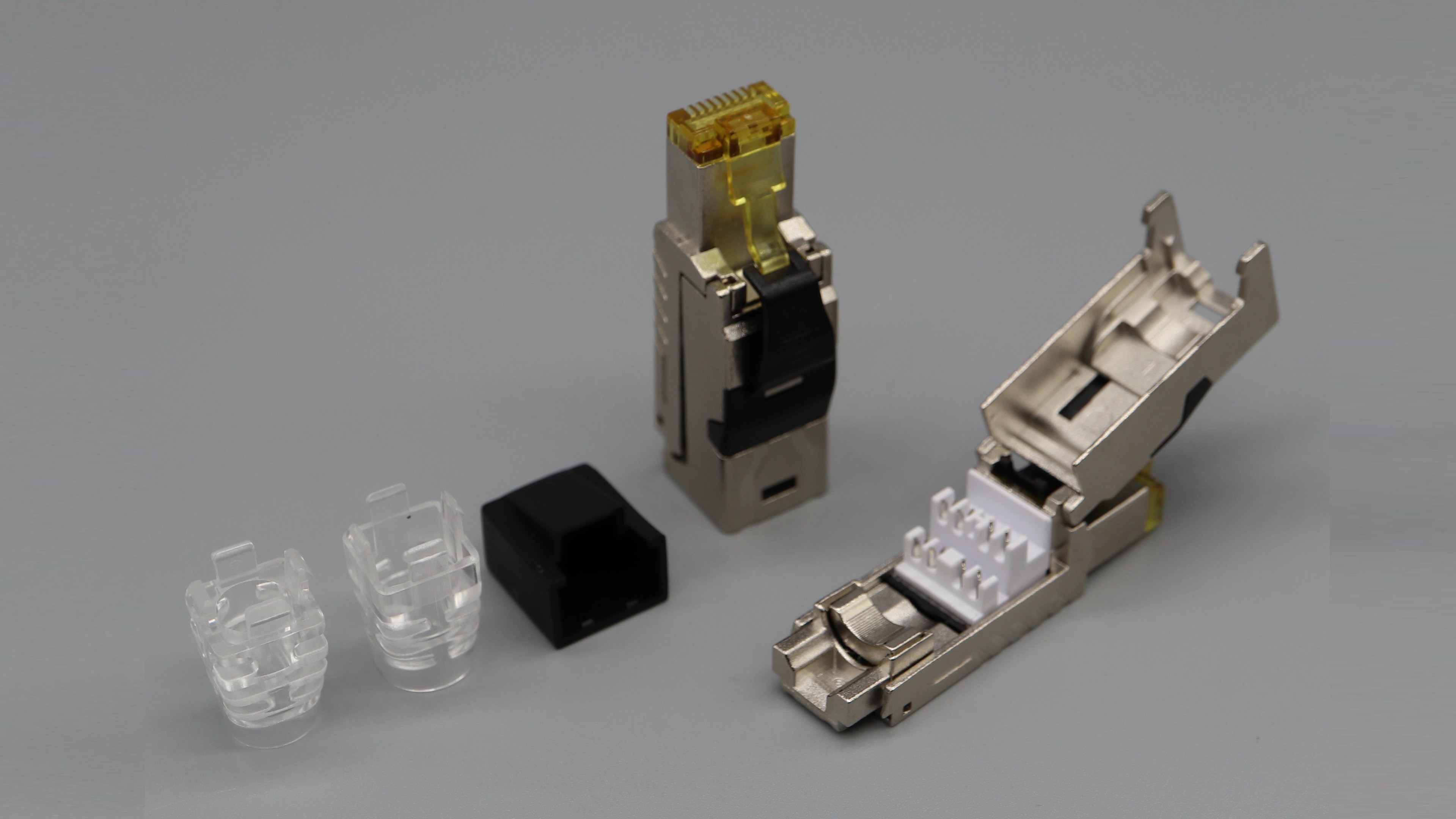

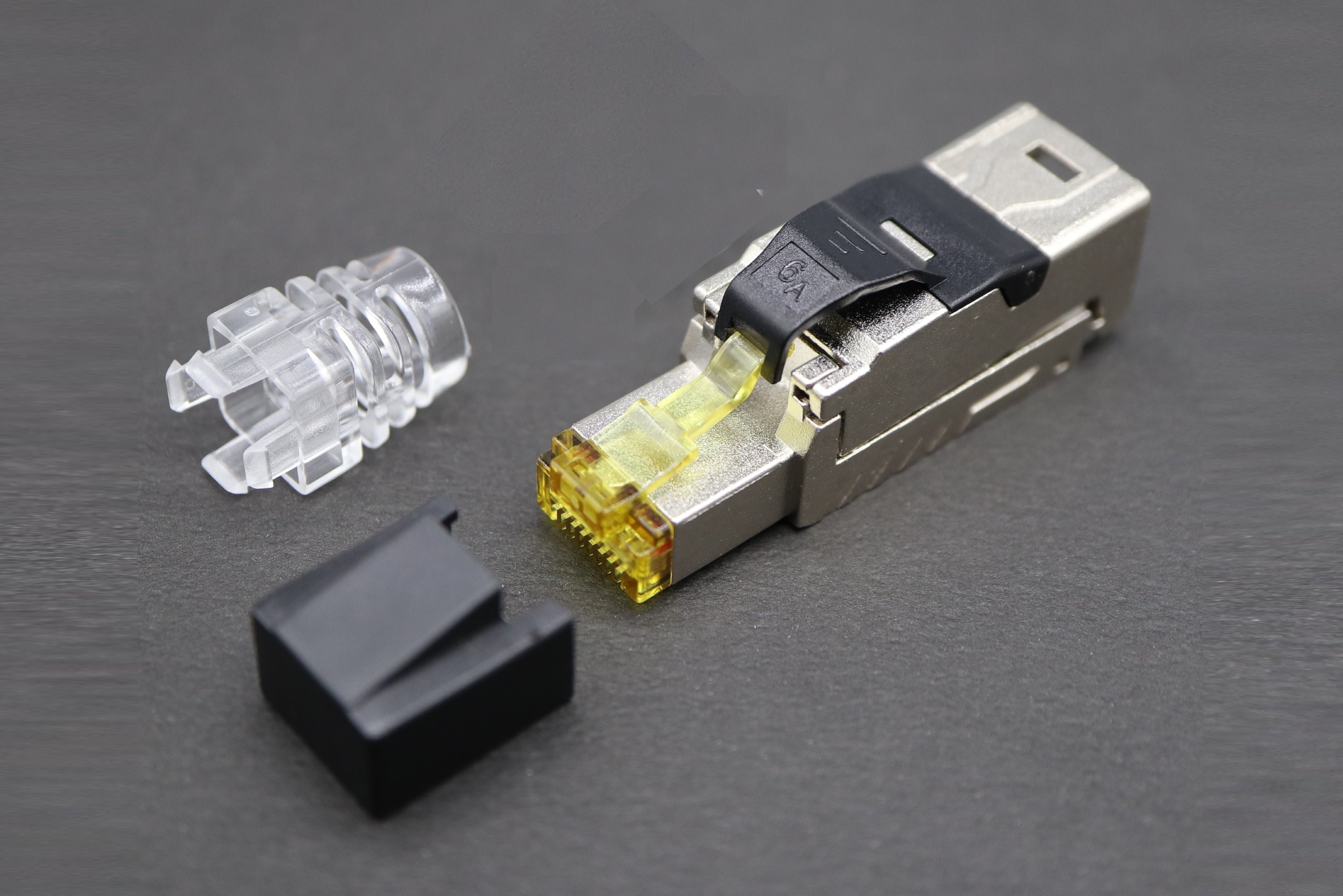

| P8-078 | C6A RJ45 Full Shielded Field Termination plug - snap-in boot type |
|
|
|
5.6~8.5mm | 1.0~1.4mm |
Solid | Stranded |
1 piece / bag , 50
pieces / white box |
-10℃ to 60 ℃ |
- 40℃ to 70 ℃ |
Meet IEC 60603-7 ,
ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS / REACH Compliant |
|||

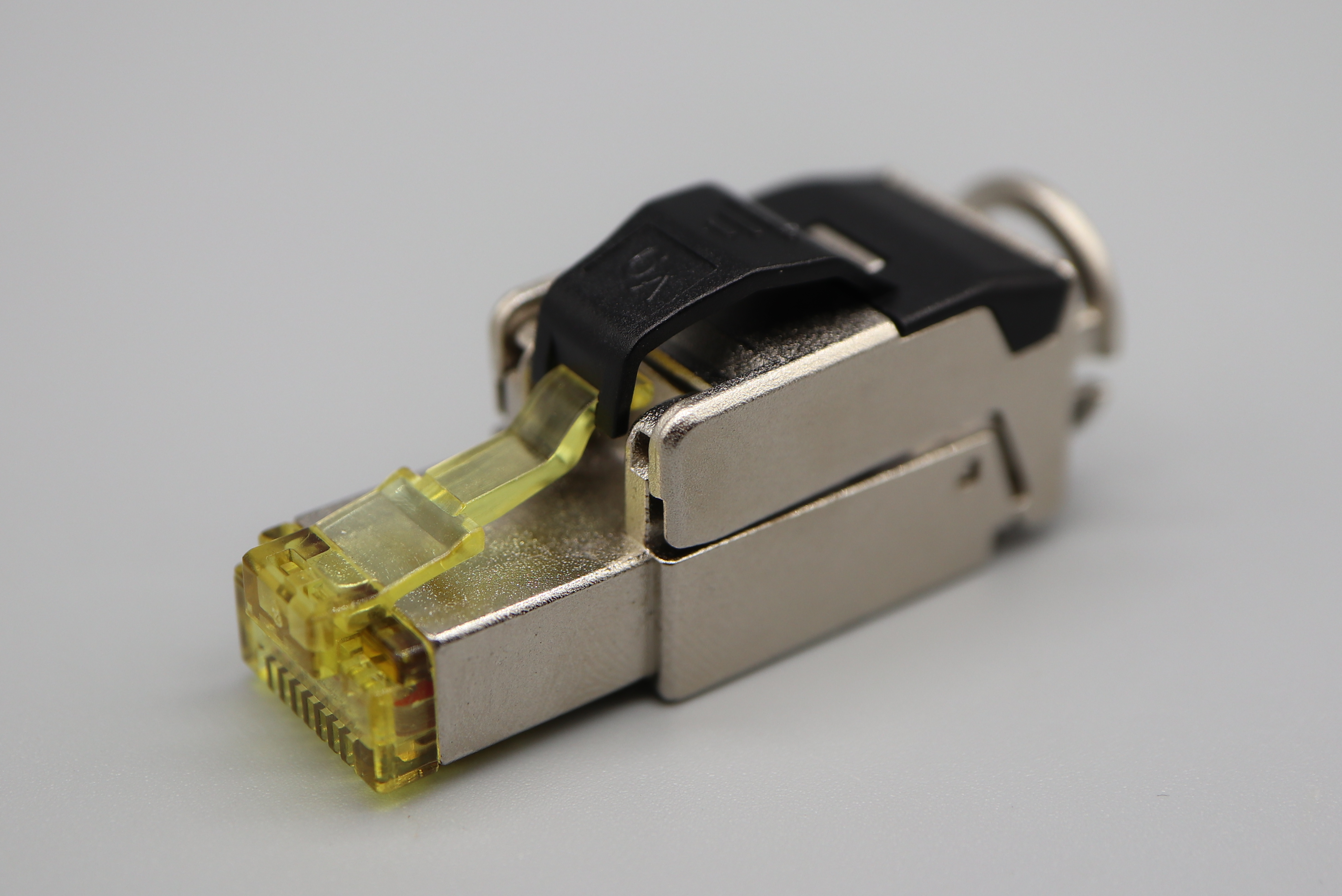

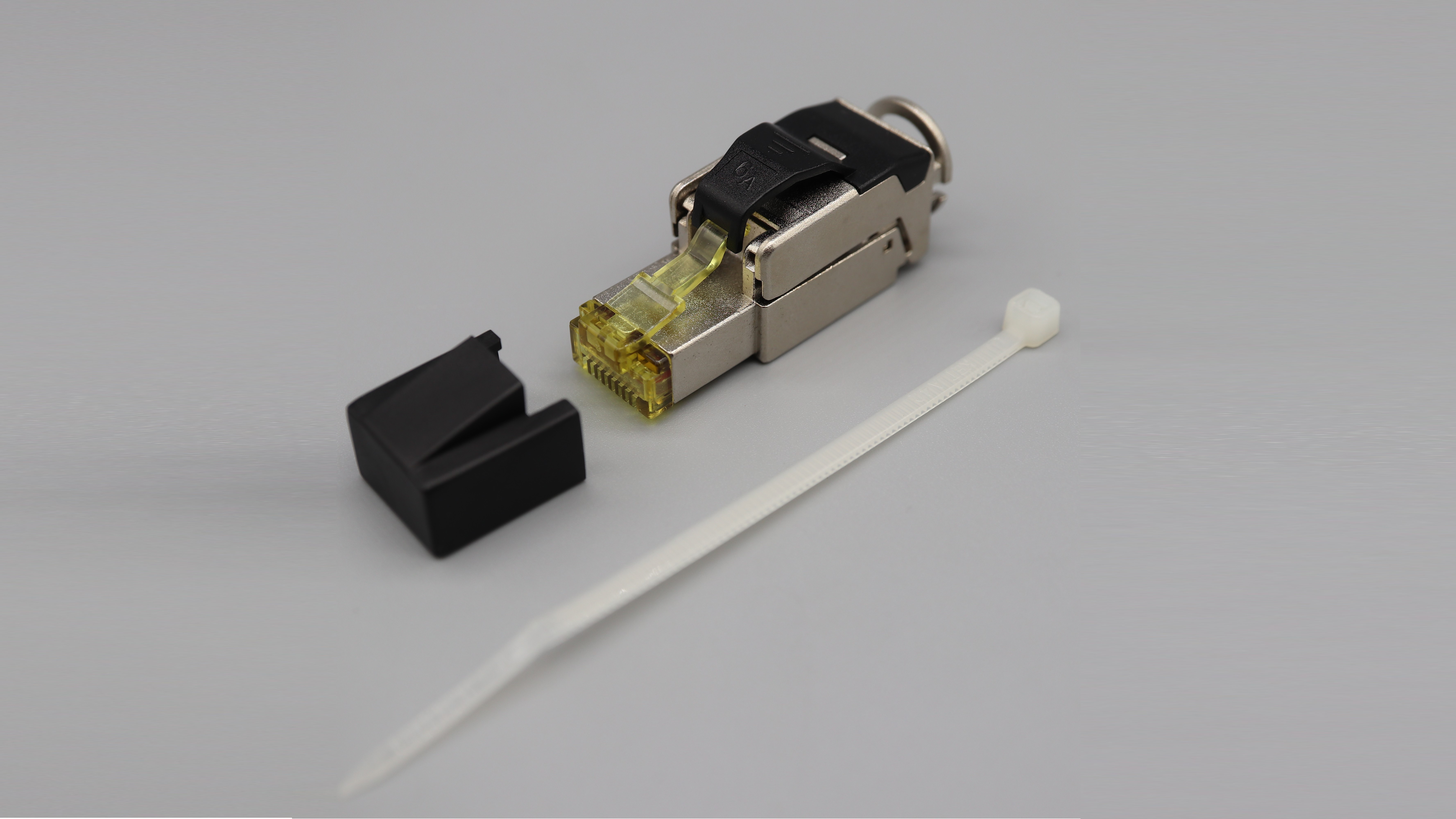

| P8-079-3 | C6A RJ45 Full Shielded Field Termination plug - cable tie type |
|
|
|
6.0 ~ 7.5 mm | 23 ~ 26 Awg | Solid | Stranded | 1 piece / bag , 50 pieces / white box | -10℃ to 60 ℃ | -40℃ to 70℃ | Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568 C.2 , TIA-1096 Chapter 4 and 5 , ROHS/ REACH compliant | |||

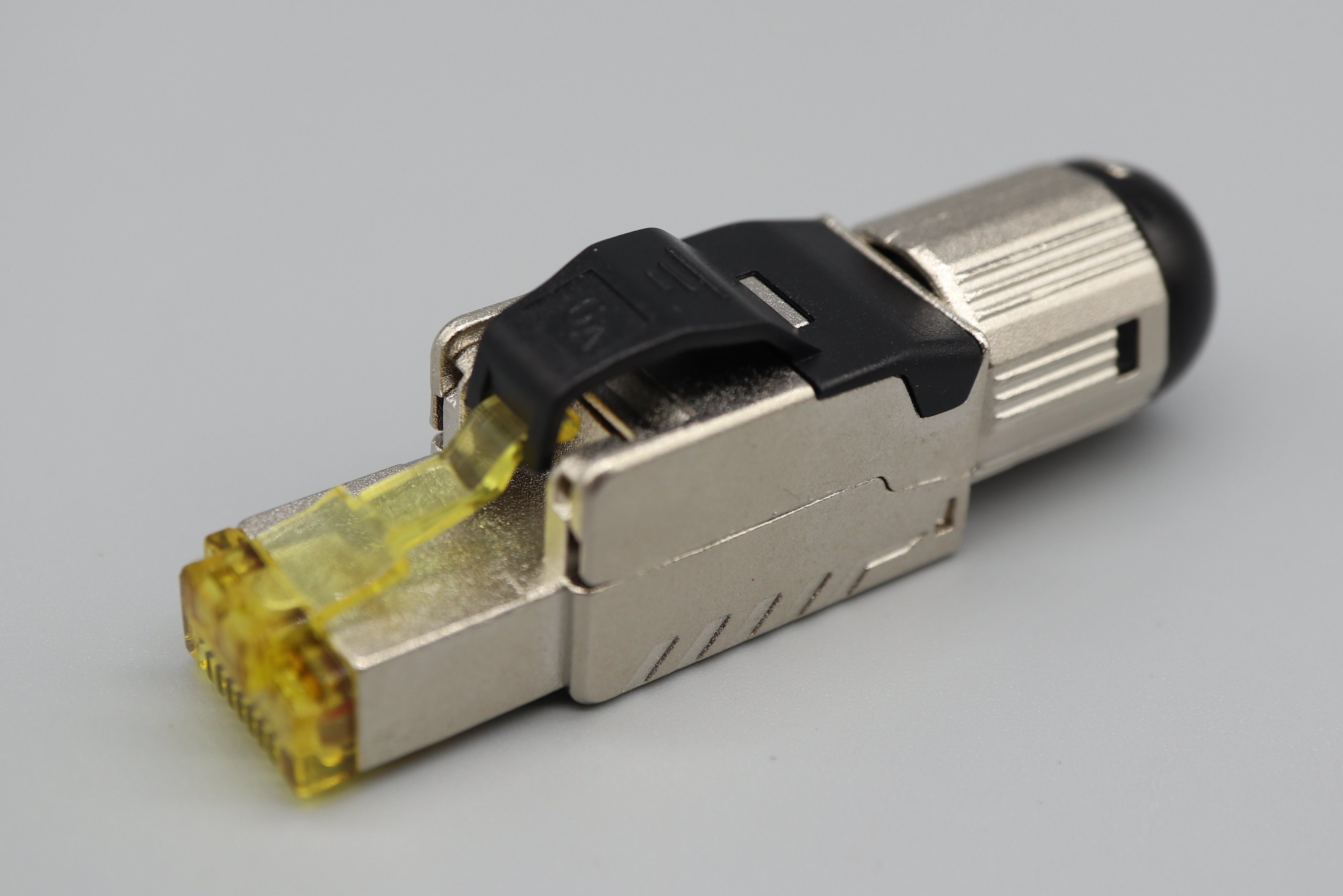

| P8-079-6 | C6A RJ45 Full Shielded Field Termination plug -Screw-fit boot type |
|
|
|
7.0~8.5mm | 22 & 24 AWG | Solid | Stranded | 1 piece / bag , 50 pieces / white box | -10℃ to 60 ℃ | -40℃ to 70℃ | Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568.2-D , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant |
 |
