| 路徑 : Product Overview > FAST -EASY- PASS THROUGH PLUG > Cat.6A > Shielded |
| Search by Pitch : |
 |
|
Shielded NOTE :
Description:
|
| Series | Pitch |
Photo | 產品列表 | 產品編號搜尋 | 其他代工資訊 | ||||||||||||||||||
| P8-020-19 | RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C F-RV 2 Rows 1.10mm |
|
|
|
|||||||||||||||||||

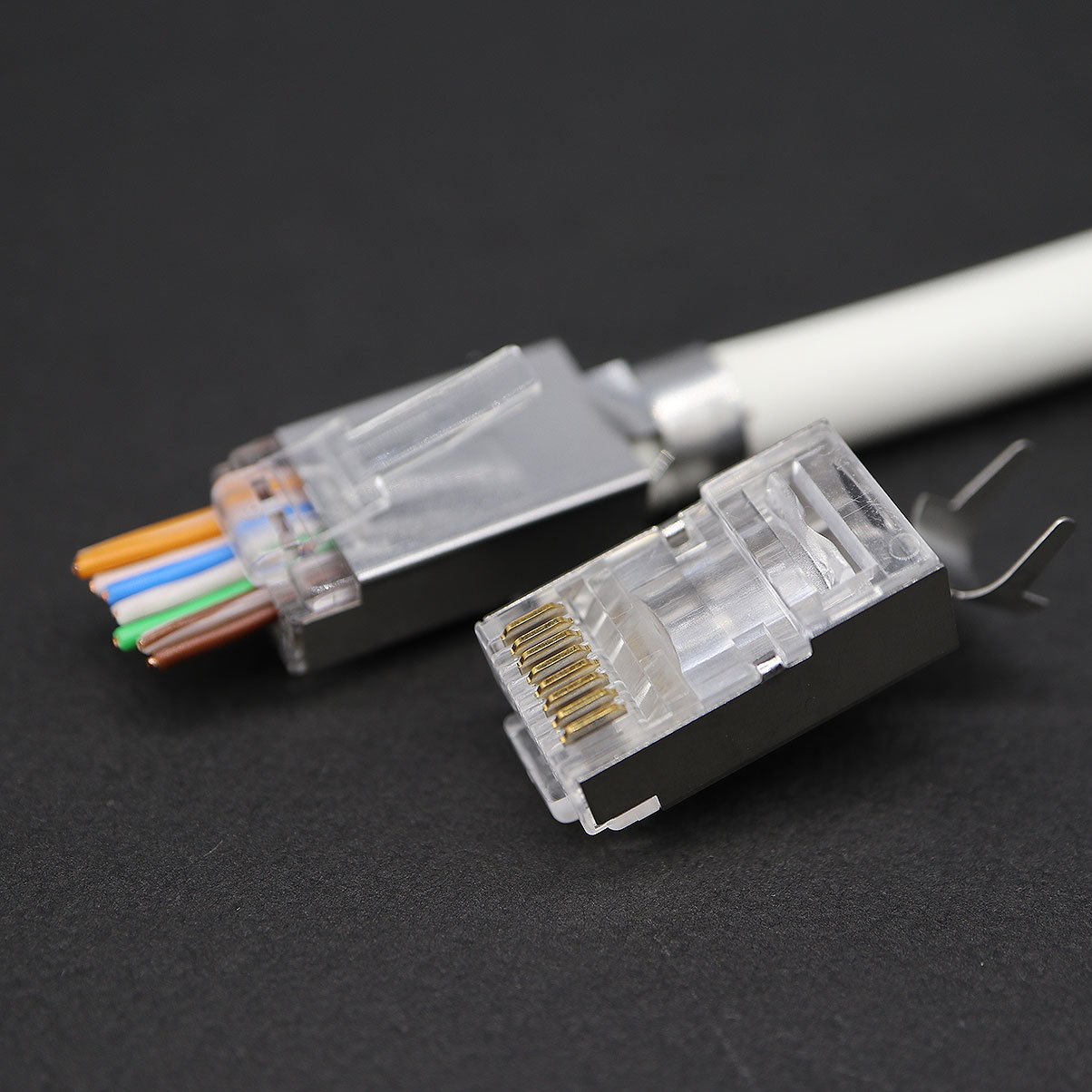

| P8-020-15 | C6A 8P8C-F-RV Shielded 1.2mm with cable clip RJ45 Fast Plug |
|
|
|
C6A STP | 8P8C-F FAST 2 rows Shielded with cable clamp and outer sheath crimp capabilities.1.2mm , C6A | F-RV | N/A | 1.20mm | For Flat Cable | Stainless Steel | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) | Solid | Stranded | -10°C to 60°C. | - 40℃ ~ 70℃ | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating | PM-3008R | |||||

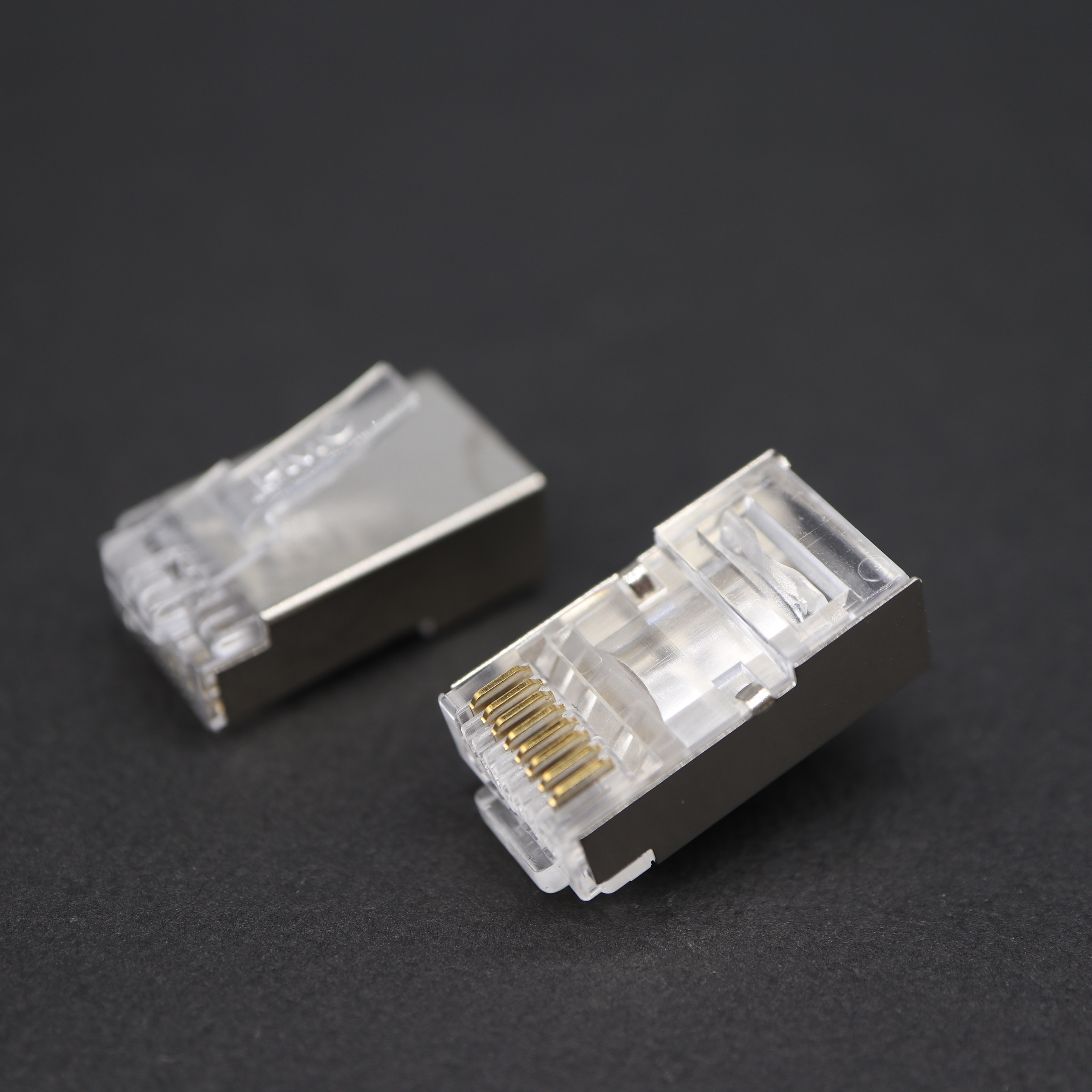

| P8-020-16 | 8P8C-F FAST 2 rows Shielded Fast 1.2mm, C6A |
|
|
|
C6A STP | 8P8C-F FAST 2 rows Shielded Fast 1.2mm, C6A | F-RV | N/A | For Flat Cable | 1.20mm | Brass with nickel plated | Solid | Stranded | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating | - 40℃ ~ 70℃ | -10°C to 60°C. | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant | SR-014 | PM-3008R | ||||

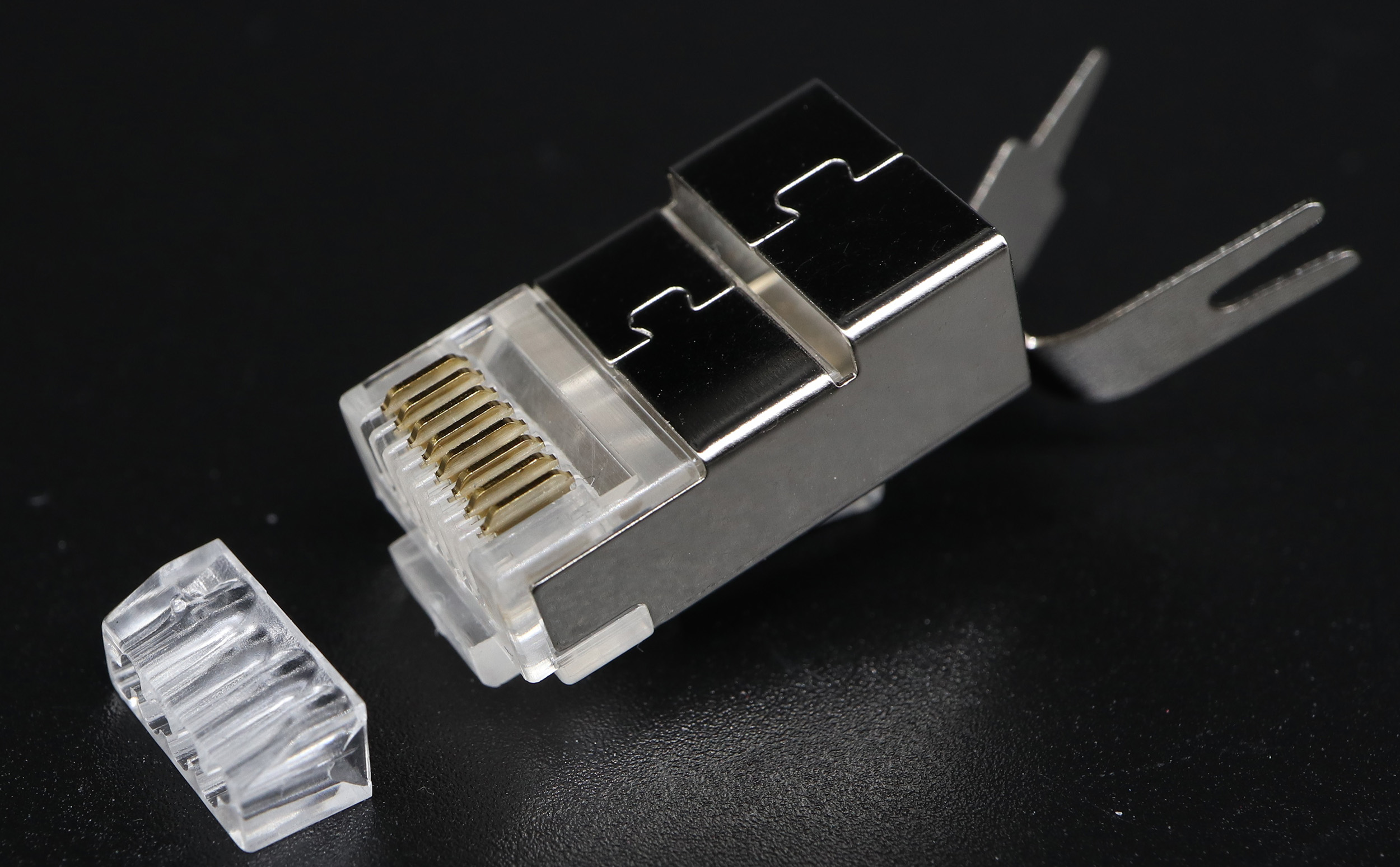

| P8-069-15 | C6A 8P8C-F Shielded 1.4mm with cable clip RJ45 Fast Plug |
|
|
|
|
C6A STP | 8P8C-F FAST 2 rows Shielded with cable clamp and outer sheath crimp capabilities.1.4mm , C6A | F | 1.40mm | 1.40mm |
For Flat Cable | Brass with nickel plated | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) | Solid | Stranded | - 10°C to 60°C | - 40℃ ~ 70℃ | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating | SR-014-1 |
Crimping tool : PM-3008R External Ground Crimping Tool : PM-5042
|
 |
