路徑 : Product Overview > FAST -EASY- PASS THROUGH PLUG > Cat.6A > Unshielded
Search by Pitch :

Unshielded
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
Series Pitch
 Photo PDF 產品列表 產品編號搜尋 其他代工資訊

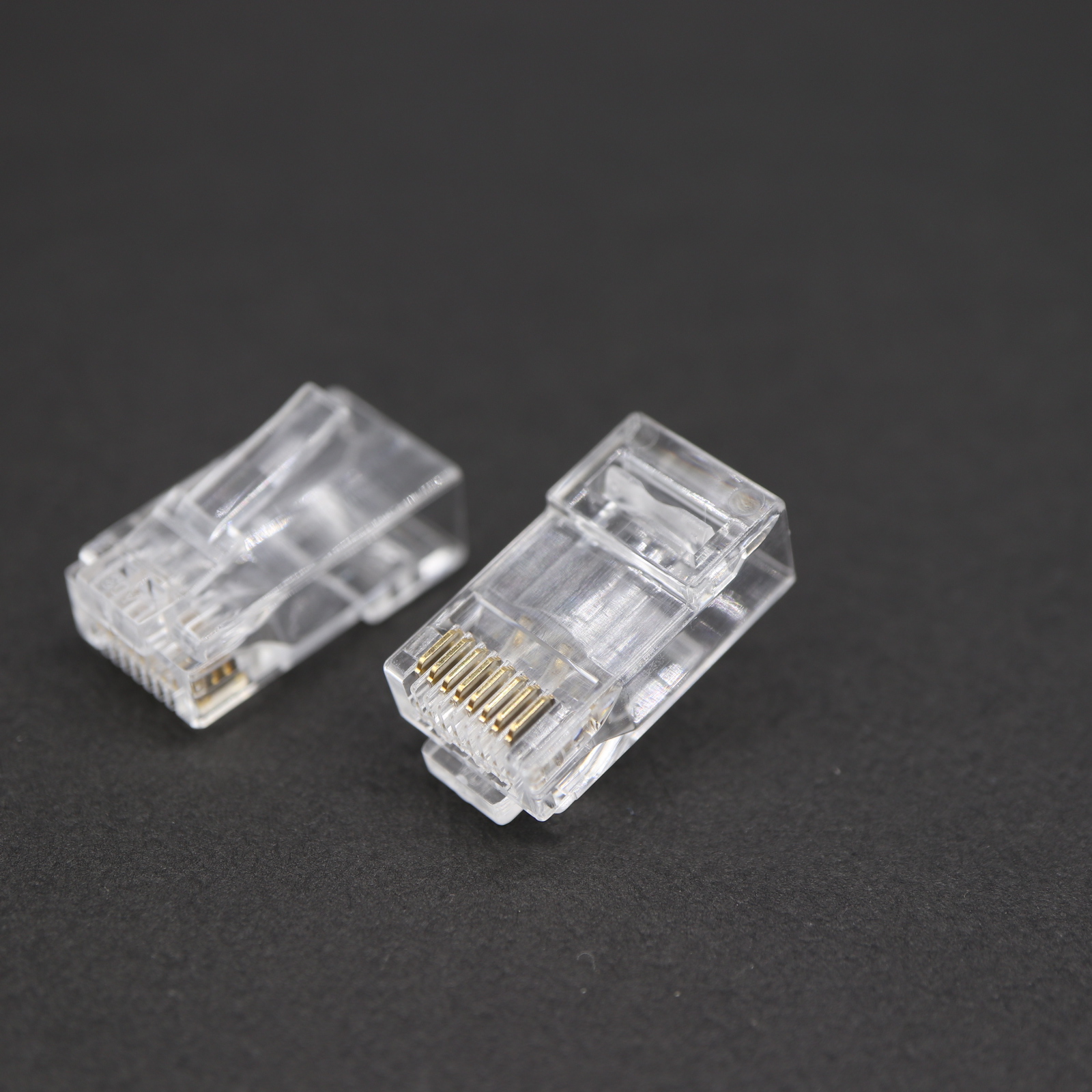

P8-071-4 C6A UTP FAST-RJ45 (Pass Through) 8P8C-2R-V 0.70mm
P8-071-2 C6A 8P8C--2R-V FAST (Pass Through) RJ45 Plug Cat. 6A UTP 8P8C--2R-V FAST 2 rows UTP C6A 2R-V N/A 1.0mm Non-Shielded. For Round Cable Solid | Stranded UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating -10°C to 60°C - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-3008R
