Shielded
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
Series Pitch
 Photo PDF Category Description Cable entry hole Loading bar Diameter Conductor hole Shielded Material Maximum Cable O.D. Size Supported Conductor type Plug Housing Material Contact Blades Material Operating Temperature Storage temperature Compliance Compatible boot Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

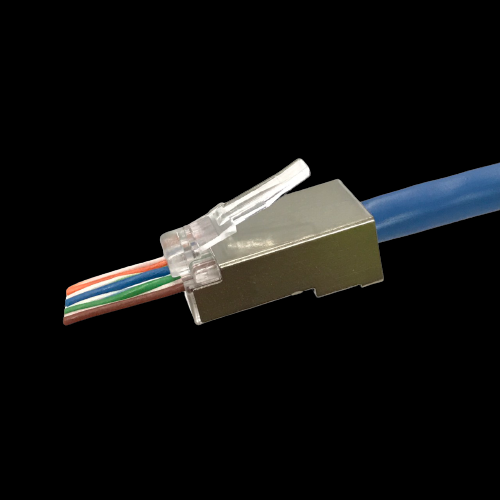

P8-005-24 C6 8P8C F-RV Shielded FAST RJ45 Plug Cat. 6 8P8C F-RV Shielded FAST C6 F-RV N/A 1.0mm Brass with nickel plated For Flat Cable Solid | Stranded UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating -10°c to 60°c - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-3008R
P8-005-26 8P8C F-RV Shielded FAST C6 C6 STP 8P8C F-RV Shielded FAST C6 1.20mm For Flat Cable Brass with nickel plated -10°c to 60°c SR-032M PM-3008R
