路徑 : Product Overview > FAST -EASY- PASS THROUGH PLUG > Cat.5e > Shielded
Search by Pitch :

Shielded
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
Series Pitch
 Photo PDF Category Description Conductor hole Max. Cable Outer Dia. Shielded Material Operating Temperature Compatible boot Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

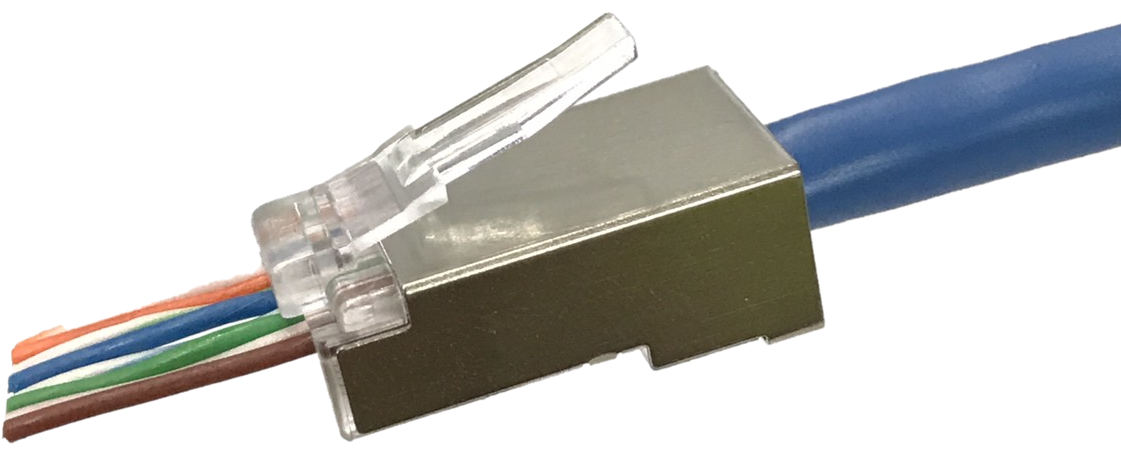

P8-005-27 8P8C-F-RV Shielded FAST C5E C5E STP 8P8C-F-RV Shielded FAST C5E 1.0mm For Flat Cable Brass with nickel plated Temperature:-10°C to 60°C SR-032M PM-3008R
