Unshielded
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
Series Pitch
 Photo PDF Category Description Cable entry hole Loading bar Diameter Conductor hole Maximum Cable O.D. Size Supported Shielded Material Conductor type Plug Housing Material Contact Blades Material Operating Temperature Storage temperature Compliance Compatible boot Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

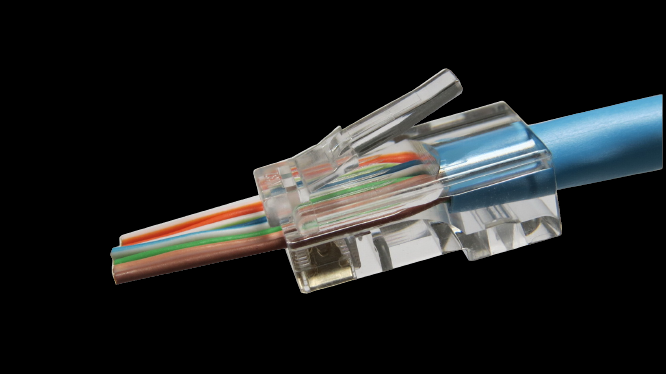

P8-007-47 8P8C-R FAST UTP C5E C5E UTP 8P8C-R FAST UTP C5E R N/A 1.0mm For Round Cable Non-Shielded Solid | Stranded UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating -10°c to 60°c - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032R PM-3008R
