Cat.6A
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
    　
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Wire Alignment Loading bar Diameter Wire Insert Diameter Maximum Cable O.D. Size Supported Maximum conductor W/insulation O.D. Size Conductor type Packaging Features Plug Housing Material Contact Blades Material Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

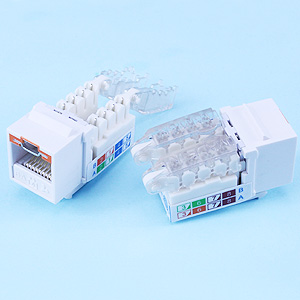

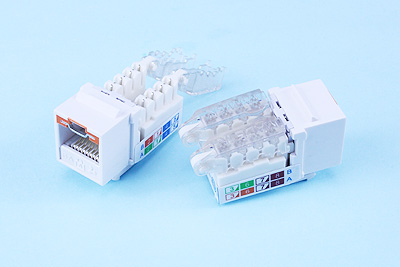

KJ-PM6AL-01 C6A Keystone Jack Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

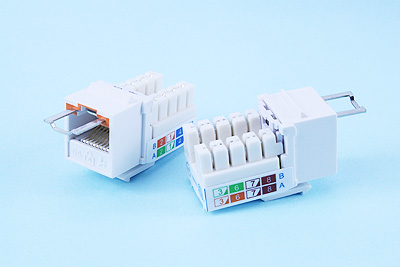

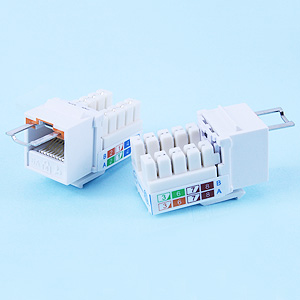

KJ-PM6AL-02 C6A Keystone Jack Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

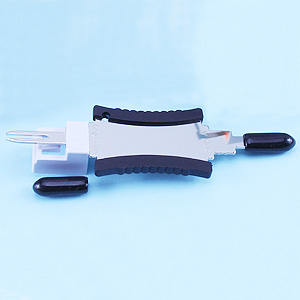

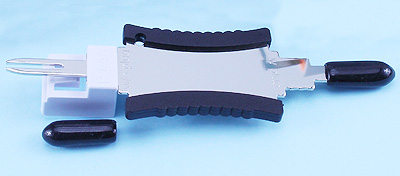

Key-PM01-01 Key Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
