Cat.5e
NOTE :
  • S : Short body type
  • M : Shielded plug with cable clip type
  • D : Dec Type (Offset Tab)

Description:

  • F : Flat cable entry
  • K : Key Type
  • R : Round cable entry
  • L : Long body
  • 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
    　
  • Two piece : Plug with Insert bar (liner)
  • Three piece : Plug with divider (sled) and insert bar.
    　
Series Pitch
 Photo PDF Performance Category Description Packaging Features Operation Temperature Compliance 產品列表 產品編號搜尋 其他代工資訊
IC-PM05L-01 C5e Inline Coupler Cat. 5e C5e Inline Coupler 1pcs/bag, 50 bags/big bag - 40℃ ~70 ℃ Meet C5e EIA/TIA 568B Standard & ROHS compliant

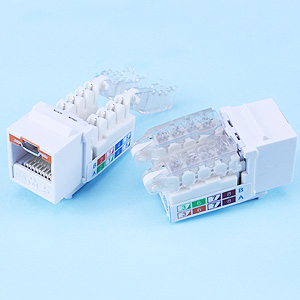

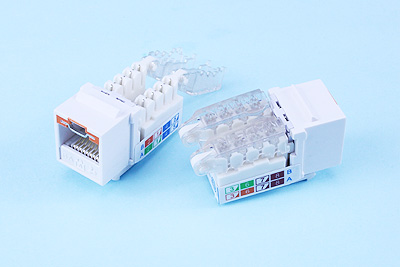

KJ-PM05L-01 C5e Keystone Jack Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

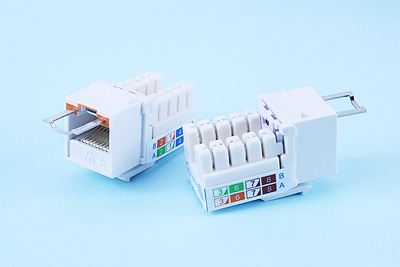

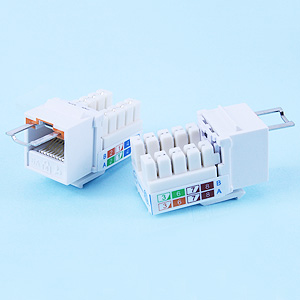

KJ-PM05L-02 C5e Keystone Jack Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃
- 40℃ ~ 70℃
 Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

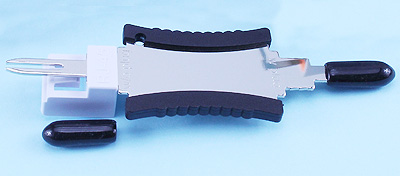

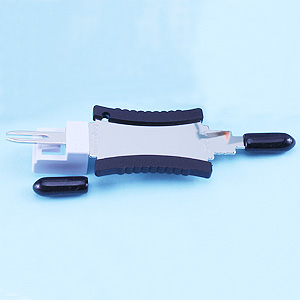

Key-PM01-01 Key Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
