路徑 : Product Overview > M-8P Plug (With cable clip) > Cat.6A
Search by Pitch :

Cat.6A

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Description 2 Available wire gauge 產品列表 產品編號搜尋 其他代工資訊

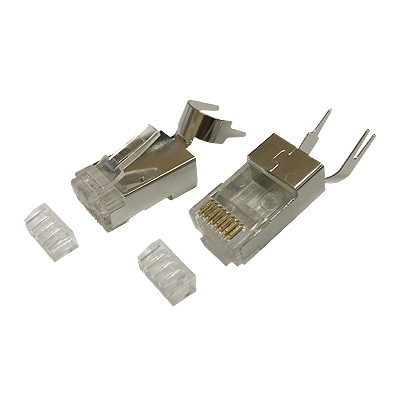

P8-069-8 8P8C-F STP 2 layers 1.5mm wire hole and insert with cable clip, Thicker cable with outer diameter 8.0mm Molding Type 8P8C F帶線夾銅殼雙排二件式1.5孔徑擋膠 配1.5菱形支架 專用線夾8.0 (B2M-LPE)  Molding type
P8-M15 C6A M-8P8C-F STP RJ45 Modular Plug Cat.6A M-8P8C-F Shielded  2 Layers with cable clip ,insert and divider F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded
 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-044 PM236Q

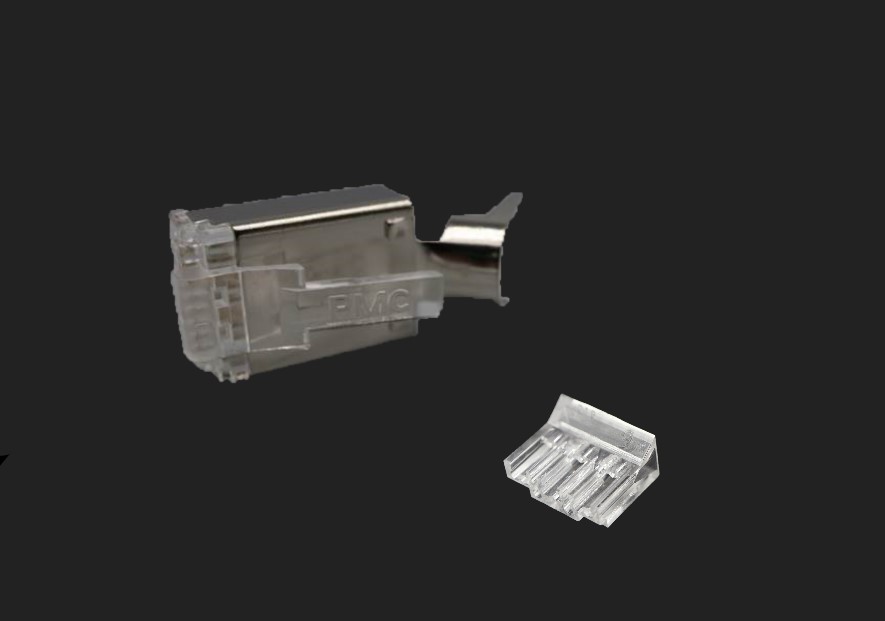

P8-M15-4 C6A M-8P8C-F STP RJ45 Modular Plug Cat.6/6A M-8P8C-F Shielded 2 Layers with cable clip, insert F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-044 PM236Q
