路徑 : Product Overview > M-8P Plug (With cable clip) > Cat.5e
Search by Pitch :

Cat.5e

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Description 2 Available wire gauge 產品列表 產品編號搜尋 其他代工資訊

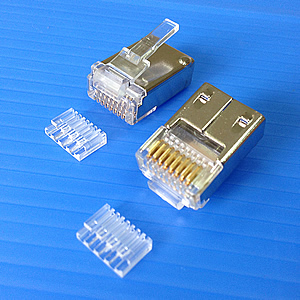

P8-M01 M-8P8C-F 2 Layers-W/Insert-Shielded M-8P8C-F 雙排二件式鐵 24~26 AWG

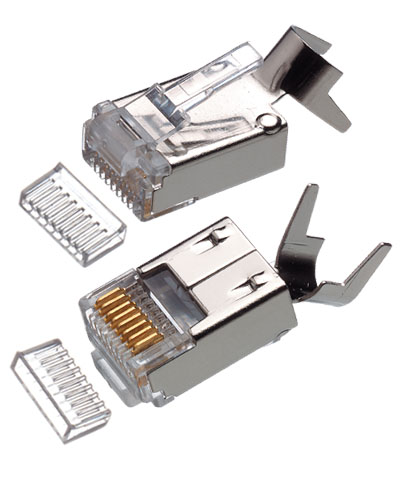

P8-M02 M-8P8C-F 2 Layers- Shielded-Cable Clip-W/Insert M-8P8C-F 雙排二件式(2.4)蝴蝶夾 鐵 24~26 AWG

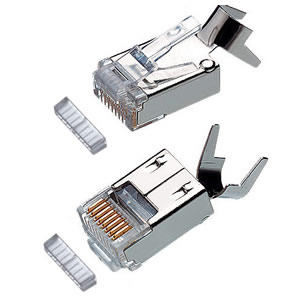

P8-M03 M-8P8C-F W/Insert-Shielded M-8P8C-F 單排二件式 鐵 24~26 AWG

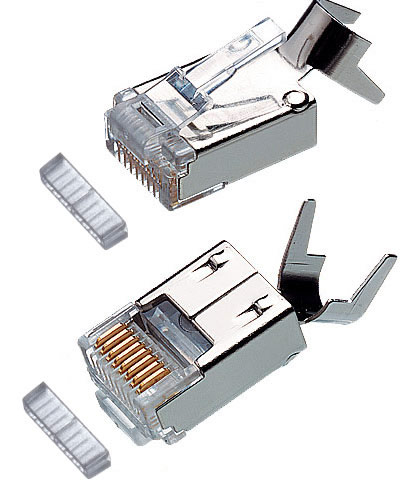

P8-M04 C5E M-8P8C-F STP RJ45 Modular Plug Cat.5E M-8P8C-F Shielded with cable clip and insert F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-044 PM-236Q
P8-M04-1 M-8P8C-F W/Insert-Cable Clip-Shielded(1.17) Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
P8-M04-2 M-8P8C-F W/Insert-Cable Clip-Shielded(0.93) M-8P8C-F 單排二件式蝴蝶夾 鐵 0.93 線孔 24~26 AWG
P8-M05 M-8P8C-F 2 Layers-Shielded M-8P8C-F 雙排 鐵 24~26 AWG

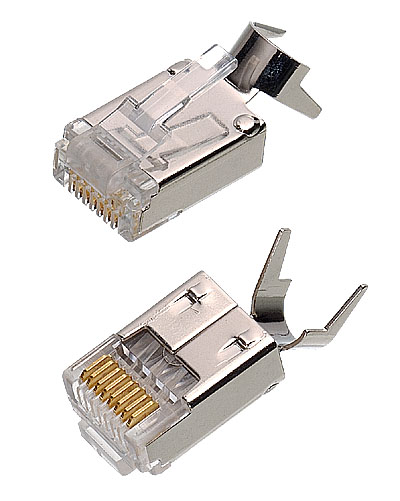

P8-M06 C5E M-8P8C-F STP RJ45 Modular Plug Cat.5E M-8P8C-F Shielded 2 Layers with cable clip and insert F 1.0mm 1.0mm 6.0mm 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-H02 PM-236Q

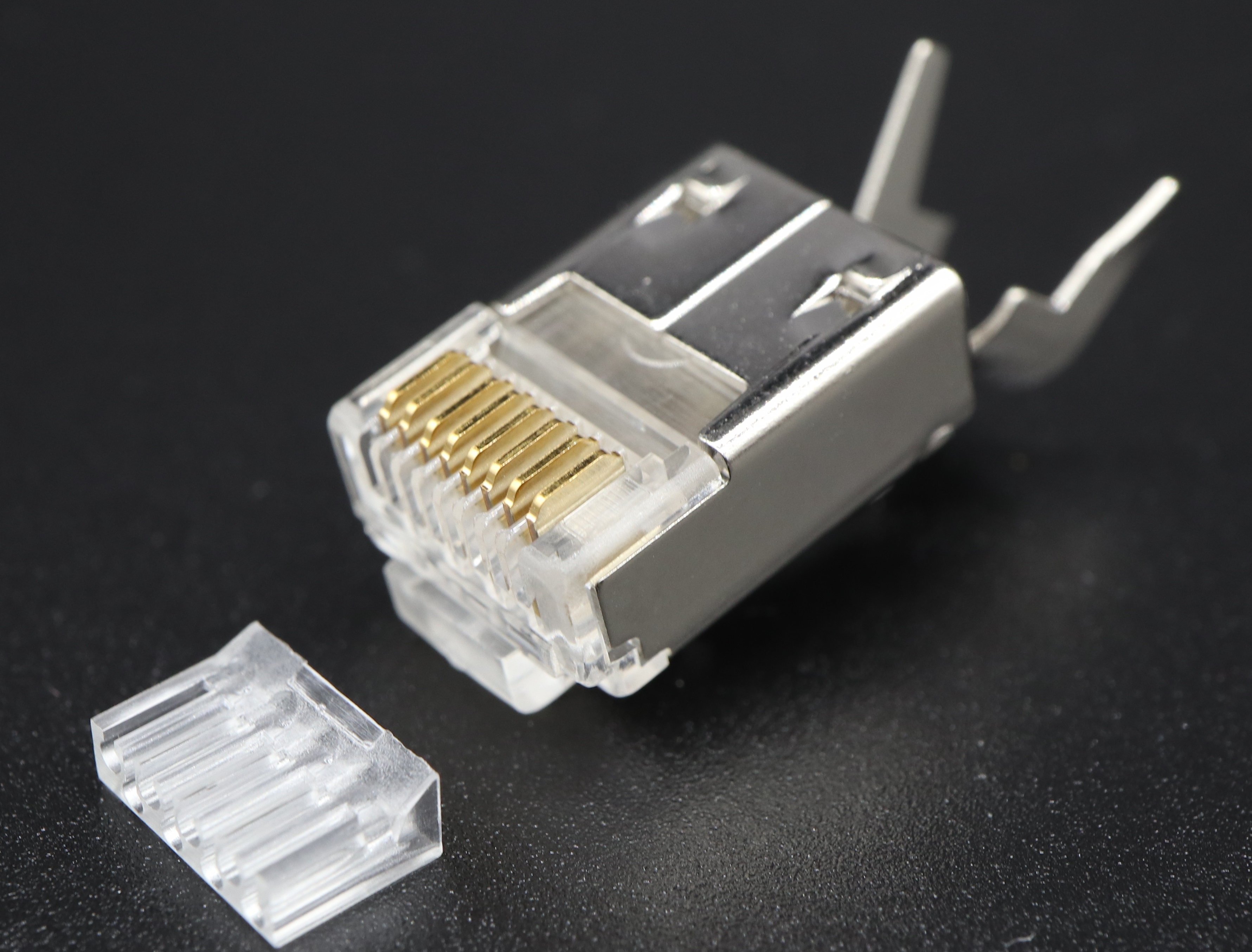

P8-M08 C5E M-8P8C-F STP RJ45 Modular Plug Cat.5E M-8P8C-F Shielded 2 Layers with cable clip and insert F 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-044 PM-236Q

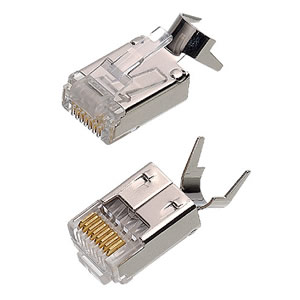

P8-M08-1 M-8P4C-F 2 Layers Cable Clip(3.4.5.6 Pin) M-8P4C-F 雙排 24~26 AWG
P8-M14 C5E M-8P8C-F STP RJ45 Modular Plug Cat.5E M-8P8C-F Shielded  Molex type F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-035 PM-236M5
