Shielded

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Loading bar Diameter Wire Insert Diameter Maximum Cable O.D. Size Supported Maximum conductor W/insulation O.D. Size Conductor type Packaging Features Plug Housing Material Contact Blades Material Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊

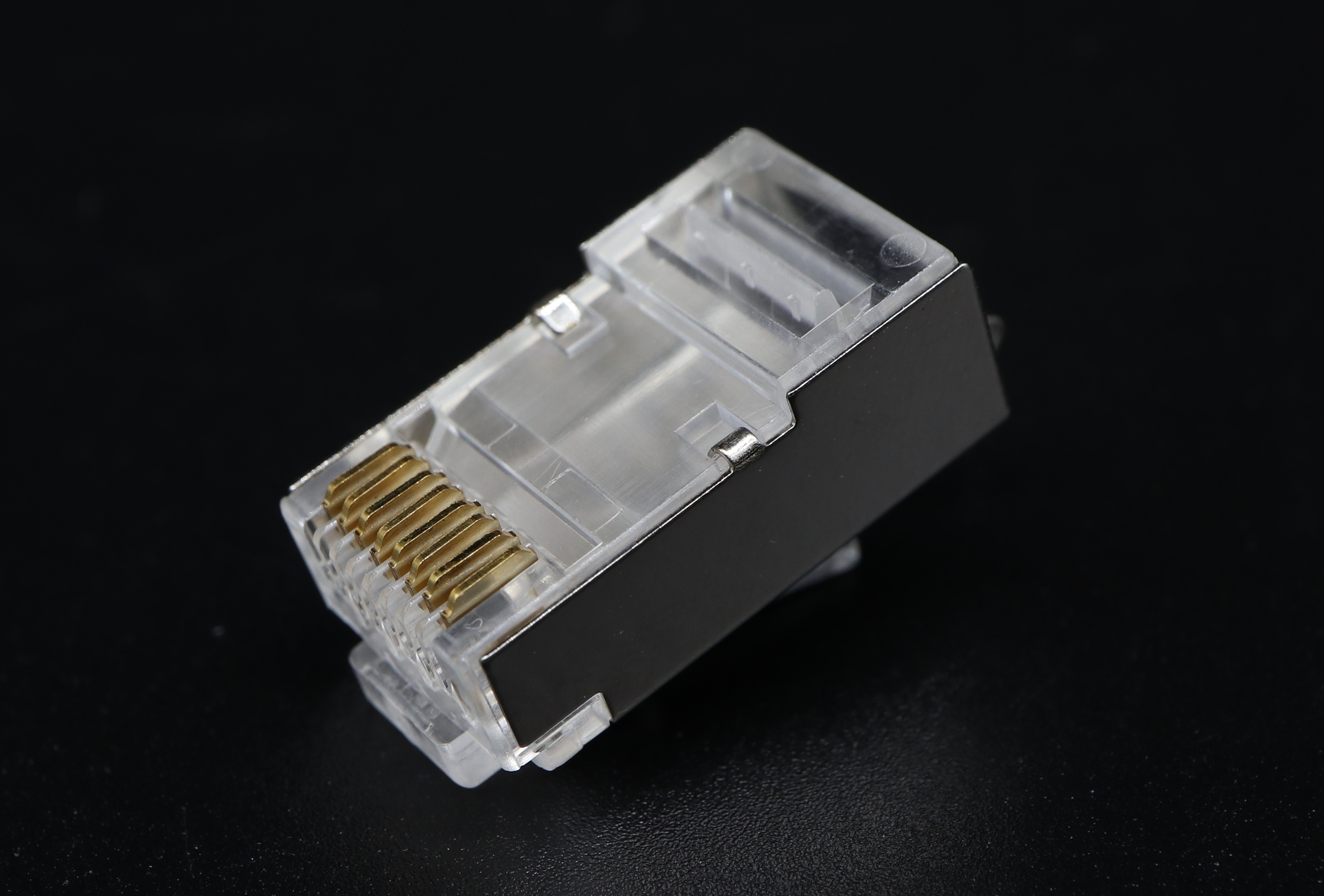

P8-020-6 RJ45 Modular Plug Cat.5E 8P8C-F STP 1.1mm Cat.5E 8P8C-F Shielded 2 layers with 1.1mm conductor hole. F N/A 1.1mm For Flat Cable 1.1mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032F PM-3008R
P8-003 C5E 8P8C-R STP RJ45 Modular Plug Cat.5E 8P8C-R Half-Shielded R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-L2182R
P8-003-1 RJ45 Modular Plug Cat.5E 8P8C-R STP W/ RIGHT KEY Cat.5E 8P8C-R Half-Shielded with Right Key R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A N/A
P8-004 C5E 8P8C-F STP RJ45 Modular Plug Cat.5E 8P8C-F Shielded F N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032R PM-L2182R

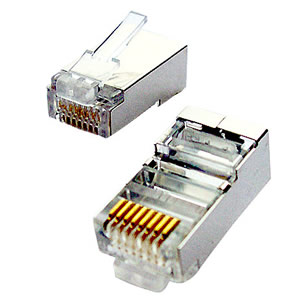

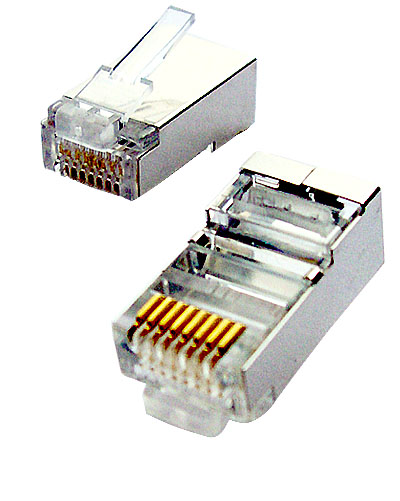

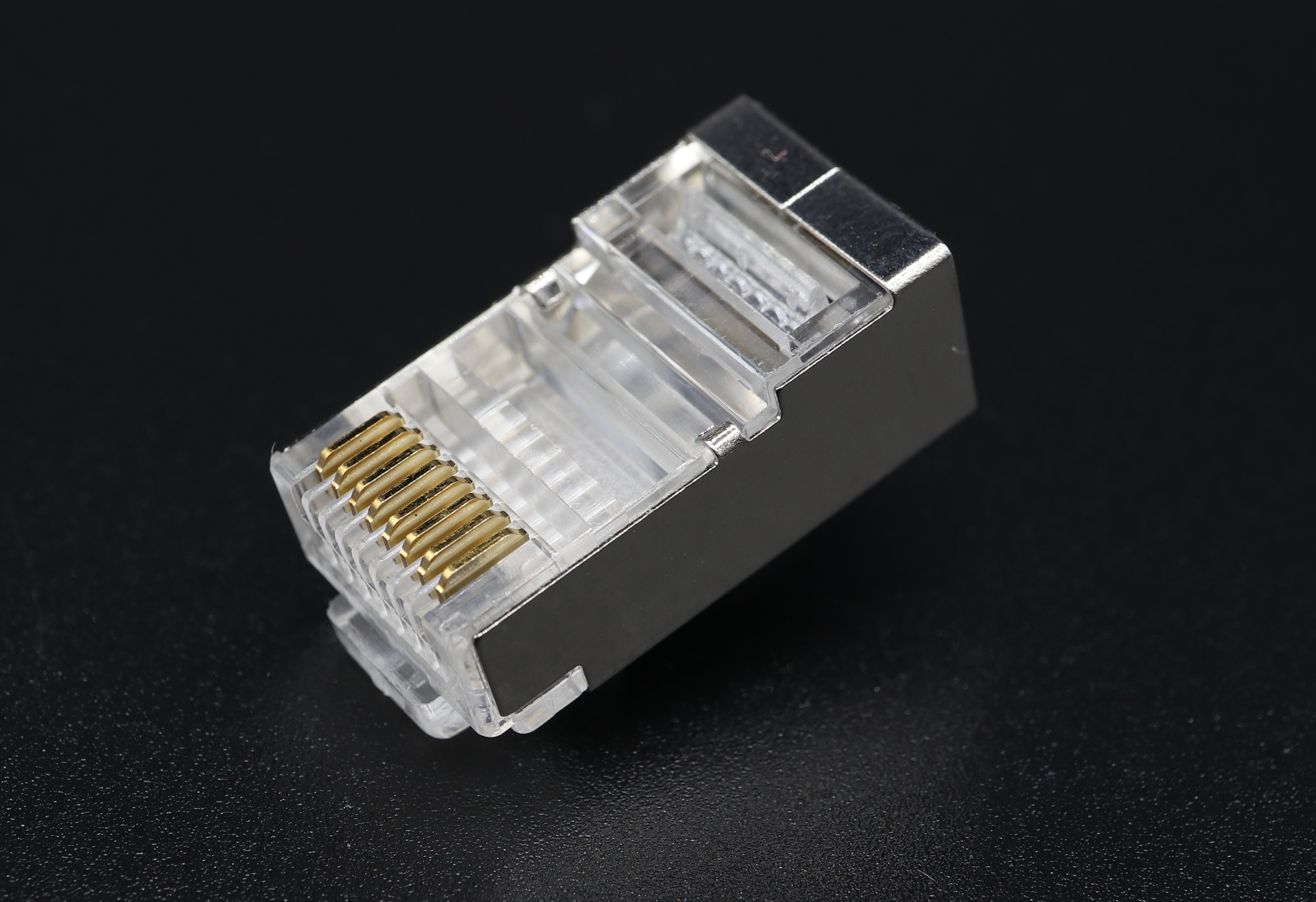

P8-005 C5E 8P8C-R Shielded RJ45 Modular Plug Cat.5E 8P8C-R Shielded R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032 PM-L2182R
P8-005-1 8P8C-R Shielded with conductor hole 0.9mm 8P8C-R-0.9mm 銅殼 (B2N-R) 26AWG
P8-005-2 8P8C-R Shielded with conductor hole 0.8mm 8P8C-R-0.8mm 銅殼 (B2N-R) 28AWG
P8-005-7 Cat.5E 8P8C-R STP 1.2mm RJ45 Modular Plug Cat.5E 8P8C-R Shielded with 1.2mm R N/A 1.2mm For Round Cable 1.2mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-008 PM-L2182R
P8-005-14 Cat.5E 8P8C-R STP RJ45 Modular Plug Cat.5E 8P8C-R Shielded with hook R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-L2182R

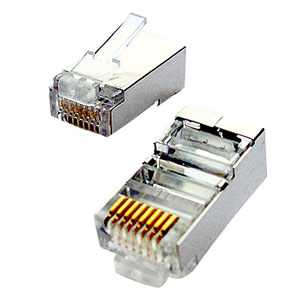

P8-005-16 8P8C-R Shielded 0.3mm 8P8C-R  銅殼  0.3mm端子  (B2N-R) 24~26 AWG

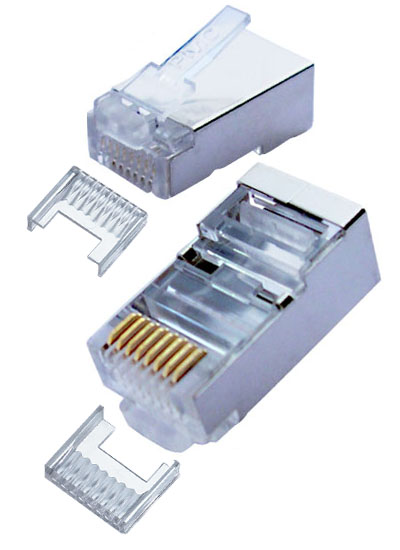

P8-009 C5E 8P8C-R STP RJ45 Modular Plug Cat.5E 8P8C-R Shielded with insert. R 1.0mm 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

SR-010M

 PM-L2182R

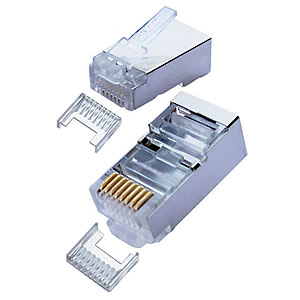

P8-009-1 8P8C-F W/Insert-Shielded 8P8C- F 二件式 鐵 24~26 AWG
P8-013-1 8P4C-R Shielded-(1.2.3.6 Pin) N/A 8P4C-R Shielded R N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-008 PM-L2182R
