DEC type

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Wire Alignment Loading bar Diameter Wire Insert Diameter Maximum Cable O.D. Size Supported Maximum conductor W/insulation O.D. Size Conductor type Packaging Features Plug Housing Material Contact Blades Material Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊
P6-D51 RJ12 Modular Plug DEC-6P6C-F UTP N/A DEC-6P6C-F F N/A N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

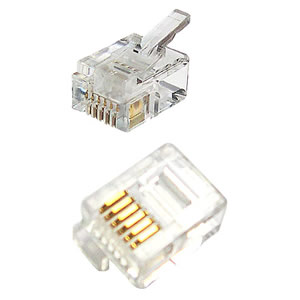

P6-D52 DEC-6P6C-R 歪頭 6P6C-R 24~26 AWG
P6-D53 RJ11 Modular Plug DEC-6P4C-F UTP N/A DEC-6P4C-F F N/A N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR
P6-D54 DEC-6P4C-R 歪頭 6P4C-R   24~26 AWG

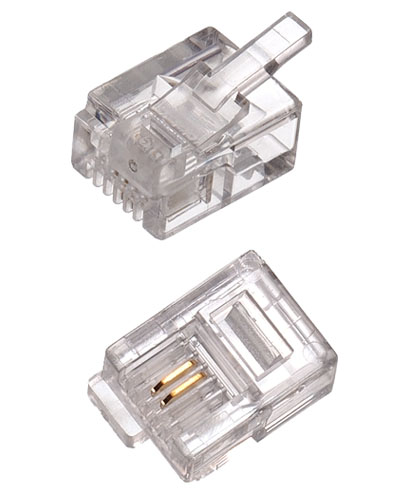

P6-D55 RJ11 Modular Plug DEC-6P2C-F UTP N/A DEC-6P2C-F F N/A N/A 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

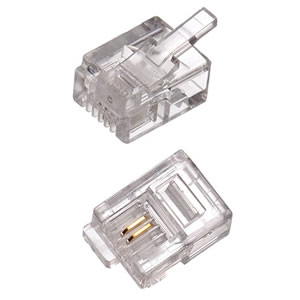

P6-D56 DEC-6P2C-R 歪頭 6P2C-R   24~26 AWG
