Standard

Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot
Series Pitch
 Photo PDF Performance Category Description Cable entry hole Loading bar Diameter Wire Insert Diameter Maximum Cable O.D. Size Supported Maximum conductor W/insulation O.D. Size Conductor type Packaging Features Plug Housing Material Contact Blades Material Operation Temperature Storage temperature Compliance Related Accessories Related Crimping Tools 產品列表 產品編號搜尋 其他代工資訊
P6-001 RJ12 Modular Plug 6P6C-F UTP N/A 6P6C-F F N/A 1.0mm For Round Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

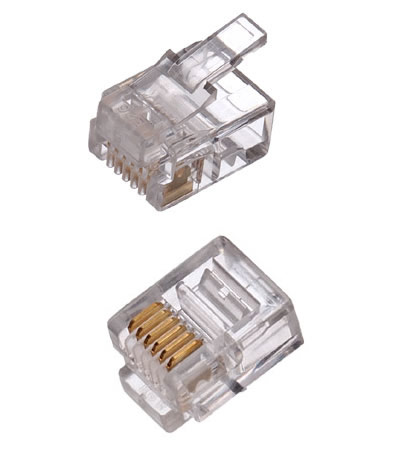

P6-002 RJ12 Modular Plug 6P6C-R UTP N/A 6P6C-R R N/A 1.0mm For Round Cable. 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

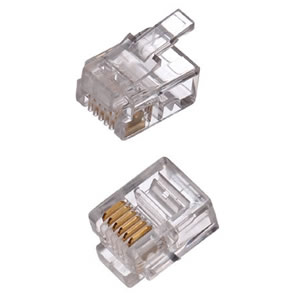

P6-002-1 6P6C-R 0.7mm 6P6C-R 0.7 mm線孔 28~30 AWG

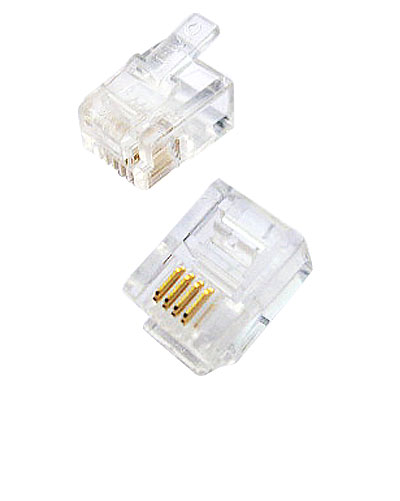

P6-003 RJ11 Modular Plug 6P4C-F UTP N/A 6P4C-F F N/A 1.0mm For Flat Cable. 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

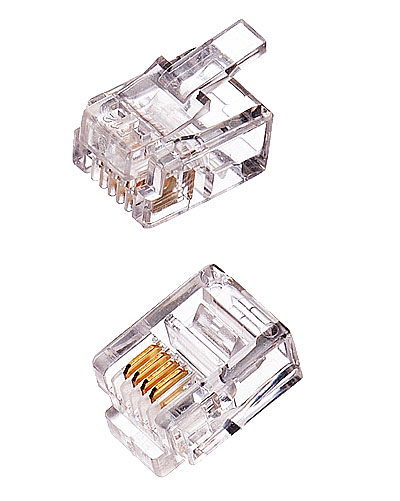

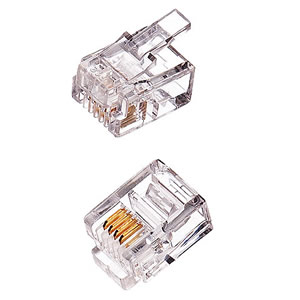

P6-003-1 6P4C-F-U 6P4C-F-U 24~26 AWG

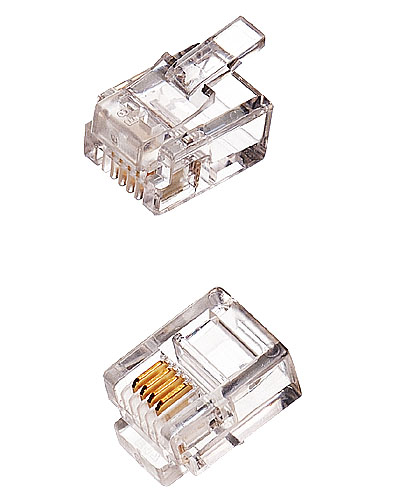

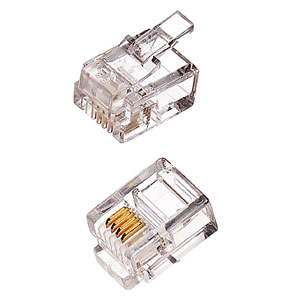

P6-003-2 6P4C-F-H 6P4C-F-H 24~26 AWG

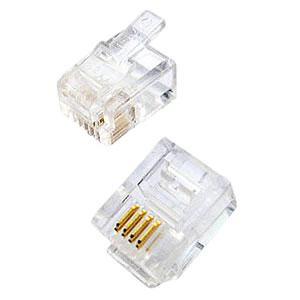

P6-003-6 6P4C-F 0.6 6P4C-F 0.6mm 線孔 30~32 AWG
P6-005 RJ11 Modular Plug 6P2C-F UTP N/A 6P2C-F F N/A 1.0mm For Flat Cable. 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR

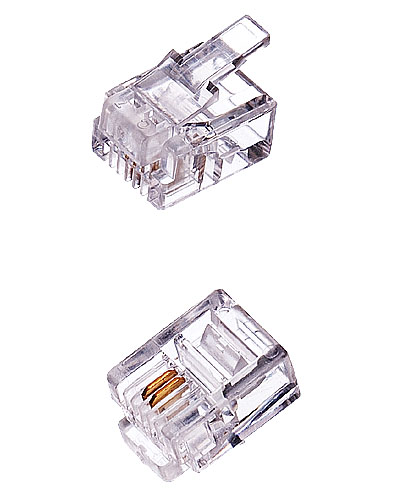

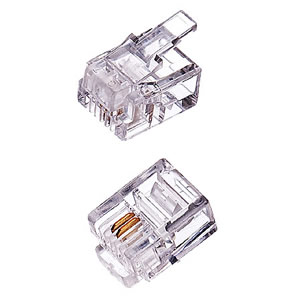

P6-005-1 6P2C-F-U 6P2C-F-U 24~26 AWG
P6-005-2 6P2C F Full Closed Little
Strain Rrelief		 6P2C F 全封閉小線檔 24~26 AWG
P6-006 RJ11 Modular Plug 6P2C-R UTP N/A 6P2C-R R N/A 1.0mm For Round Cable. 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant N/A PM-2008AR
