Description:

Cable entry hole:

  • R : Radiused Entry for Round or Flat cable.
  • F : Rectangular Entry for Flat cable.
    　

Body type:

  • K : Key Type
  • D : Dec Type (Offset Tab)
  • L : Long body or Long latch
  • S: Short body
  • Shielded: STP/FTP Plug
    　

Wire hole arrangement :

  • One layer : Standard
  • Two Layers: 2-level comes with long pin and short pin (Up and down)
    　

Combination :

  • Single Part : Plug without any inserts.
  • 2 piece : Plug with Insert (load bar)
  • 3 piece : Plug with divider and insert
  • 4 piece : Plug with divider, insert, and boot

Picture Part No. Description 1 Drawing Request Quote
P8-002-15 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F 1.2mm
P8-069-17 C6A Shielded RJ45 Modular Plug 8P8C-F 2 rows 1.6 / 8.0mm
test
P8-002-4 C6A Shielded RJ45 Modular Plug 8P8C-F 2 Rows 1.4mm
P8-042-2 C6 Shielded RJ45 Modular Plug 8P8C-F-V
P8-002-5 C6A 8P8C-F STP-1.4mm with Hook RJ45 Modular Plug Cat.6A 8P8C-F Shielded with hook, 2 Layers with insert 1.4mm F 1.4mm 1.4mm For Flat Cable 1.40mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-L2182R
P8-002-10 C6A 8P8C-F STP-1.4mm RJ45 Modular Plug Cat.6A 8P8C-F Shielded, 2 Layers wire hole 1.4mm with insert 1.5mm F 1.5mm 1.4mm For Flat Cable 1.4mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-L2182R
P8-064 C6A 8P8C-F-RV Shielded RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded 2 Layers with insert and divider F-RV 1.0mm 1.0mm

For Flat Cable

 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating Copper over Nickel Plating or Copper over Gold Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-2 C6A 8P8C-F-RV STP-1.1 mm RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded, 2 Layers with insert 1.1mm and divider F-RV 1.1mm 1.1mm For Flat Cable 1.1mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-8 C6A 8P8C-F-RV STP-0.8mm RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded with insert 0.8mm and divider F-RV 0.8mm 0.8mm For Flat Cable 0.8mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-9 C6A 8P8C-F-RV STP-0.60mm RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded with insert 0.6mm F-RV 0.6mm 0.6mm For Flat Cable 0.6mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-10 C6A 8P8C-F-RV STP RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded with insert and divider F-RV 1.0mm 1.0mm For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-11 C6A 8P8C-F-RV STP-0.80mm RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded, 2 Layers with insert 0.8mm F-RV 0.8mm 0.8mm For Flat Cable 0.8mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R
P8-064-12 C6A 8P8C-F-RV STP-0.80mm RJ45 Modular Plug Cat.6A 8P8C-F-RV Shielded, 2 Layers with insert 0.8mm and divider F-RV 0.8mm 0.8mm For Flat Cable 0.8mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M PM-L2182R

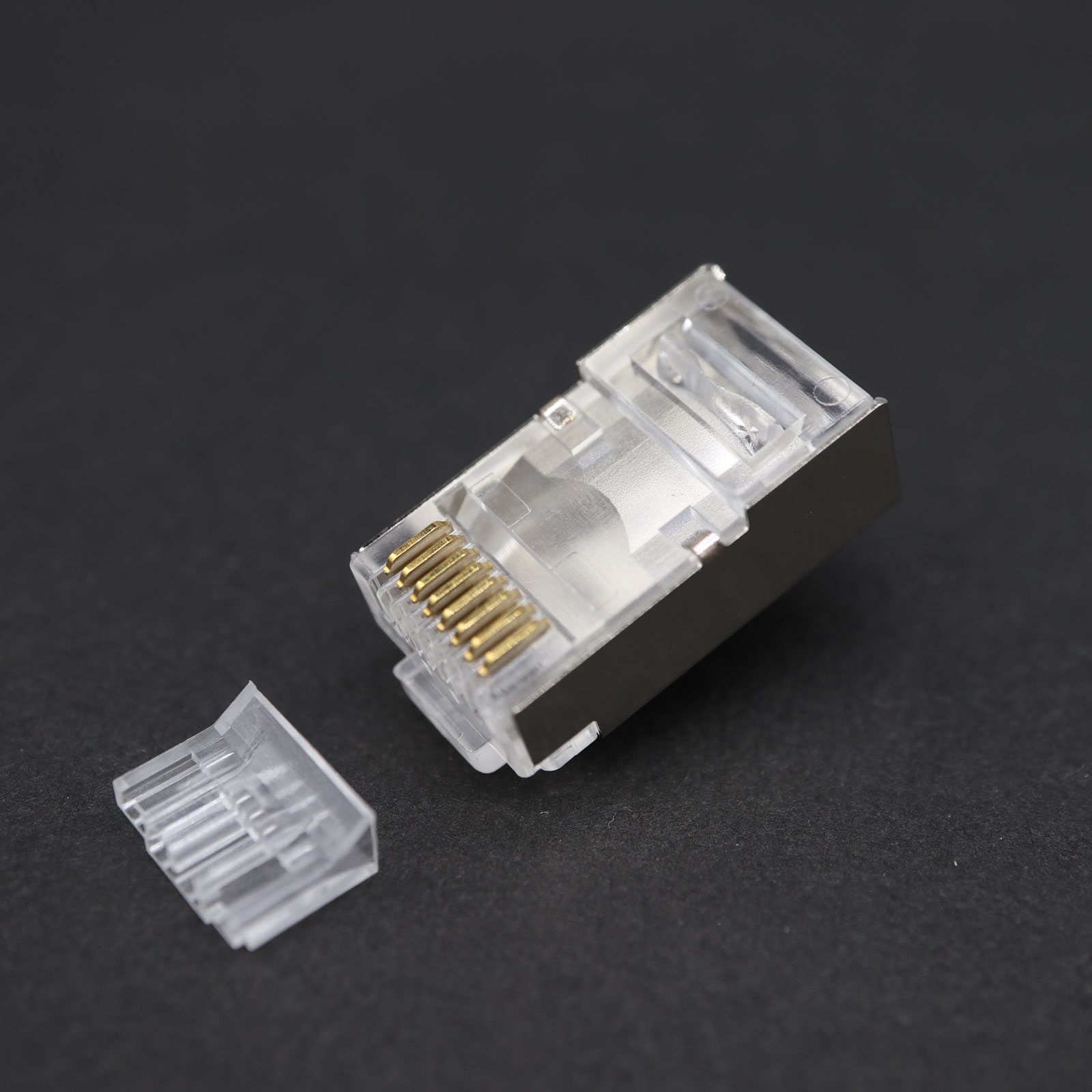

P8-081-1 C6A 8P8C-F-RV STP RJ45 Modular Plug C6A 8P8C  F-RV Shielded 2 layers with insert F-RV 1.0mm

1.0mm

 For Flat Cable 1.0mm Solid | Stranded 1000pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-032M

PM-3008R   PM-L2182R
P8-069 C6A 8P8C-F STP-1.4mm/7.0mm RJ45 Modular Plug Cat.6A 8P8C-F Shielded 2 Layers with cable clip and insert 1.4mm F 1.4mm 1.4mm For Flat Cable 1.40mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-236Q1D
P8-069-1 C6A 8P8C-F STP -1.2mm / 7.0mm RJ45 Modular Plug Cat.6A 8P8C-F Shielded 2 Layers with cable clip 7.0mm , wire hole  1.2mm with insert 1.4mm F 1.4mm 1.2mm For Flat Cable 1.2mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating  - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-236Q1D
P8-069-2 C6A 8P8C-F STP-1.4//8.0mm RJ45 Modular Plug Cat.6A 8P8C-F Shielded 2 Layers with cable clip 8.0mm, insert 1.4mm F 1.4mm 1.4mm For Flat Cable 1.40mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃  - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-236Q1D
P8-069-5 C6A 8P8C-F STP-1.5 / 8.0mm RJ45 Modular Plug Cat.6A 8P8C-F Shielded 2 Layers with cable clip 8.0mm, insert 1.5mm F 1.5mm 1.5mm For Flat Cable 1.5mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-236Q1D
P8-069-9 RJ45 Modular Plug C6A 8P8C-F STP-1.5 / 8.0mm Cat.6A 8P8C-F Shielded 2 Layers with cable clip 8.0mm, wire hole 1.6mm with insert 1.5mm F 1.50mm 1.60mm For Flat Cable 1.50mm Solid | Stranded 500pcs/bag UL 94V-0 or 94V2 rated clear Polycarbonate (PC) Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating Copper over Nickel Plating or Copper over Gold Plating - 10℃ ~60 ℃ - 40℃ ~ 70℃ Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant SR-014 PM-236Q1D
