Bang-Tec, Inc.

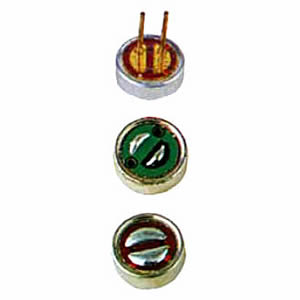

Very small,thin type
Close talk characteristics effectively reduce ambient noice
Most suited to products having limited Space


Capacitor inside:

• 10pF(DECT, PHS, PCN, PCS.etc.)
• 33pF(GSM.PDS.etc.)
• 10pF+33pF(DECT, PHS, PCN,GSM,PDS.etc.)


Specifications:

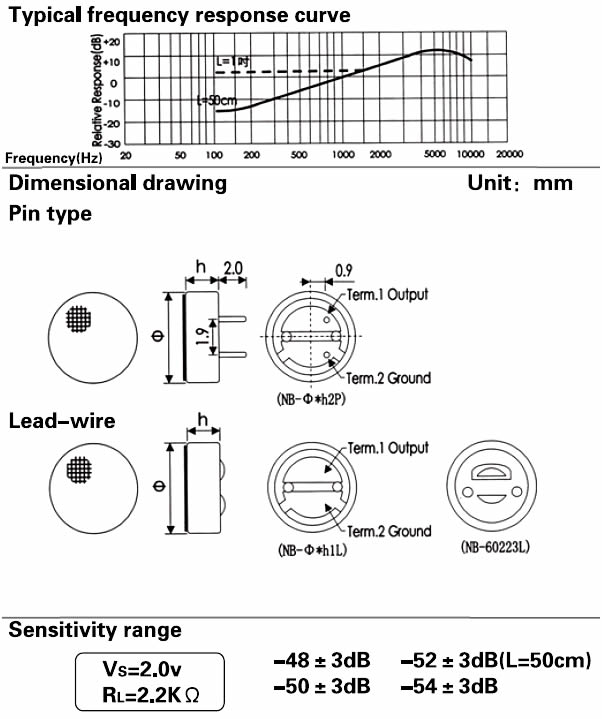

• Sensitivity: See above(0dB = 1v / Pa, 1kHz)
• Impedance: Less than 2.2KΩ
• Directivity: Noise cancelling
• Frequency: 100-10,000Hz
• Max. operation voltage: 10.0V
• Standard operation voltage: 2.0V
• Current consumption: Max. 0.5mA
• Sensitivity reduction: Within-3dB at 1.5V
• S/N ratio: More than 50dB
• Shape size: ∮6.0 x h2.2
